ADAPTORS -RINGS-BELL HOUSING Custom Bell-housings (motor- pump)

Description

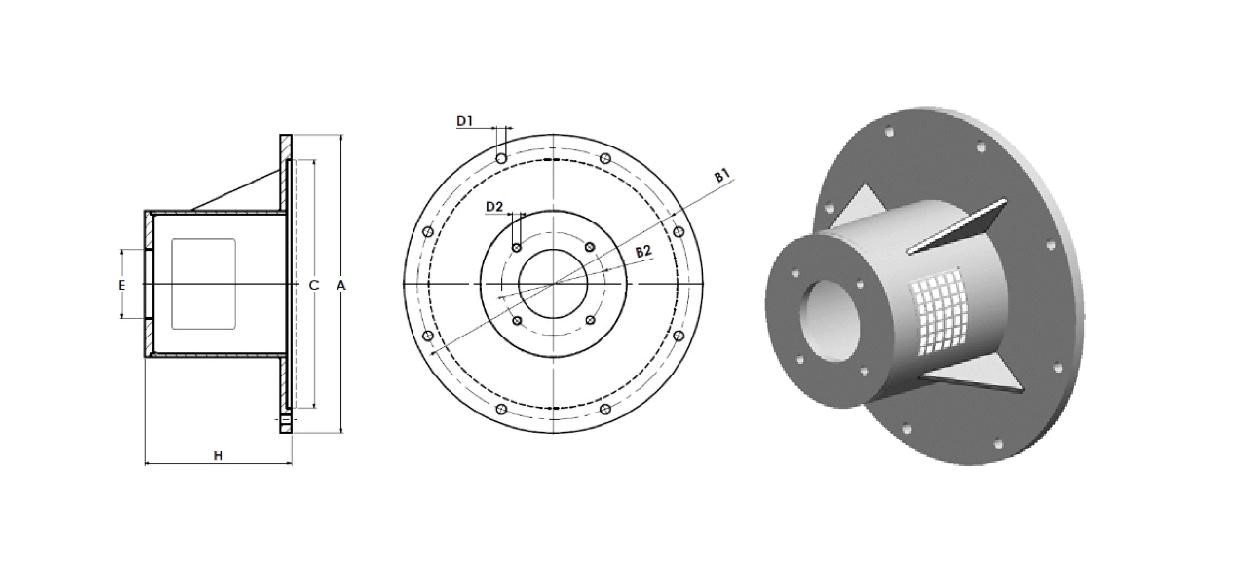

The Bell Housings (Lanterns) serve as the connection point between two machines or sub-machines, providing a solid link. The typical installation is between the engine and the pump. Bell Housings also function to protect the motion transmission joint, preventing accidental contact with moving parts and avoiding harm to individuals and objects. They can be custom-designed to meet the specifications of the engine and the parts of the system to be connected, considering dimensions, fastening holes, and compatibility constraints of the components. Bell Housings are usually made of steel to ensure good strength and durability, and they can be shaped to adapt to various transmission configurations based on the length of the transmission component. When the coupling component has a reduced axial footprint, connection flanges with drilling for pumps are created. Please contact our office for specific dimensions. Moreover, they can have openings for ventilation and holes for the installation of related components, such as speed sensors or other accessories, as well as drainage holes. The dimensions of the ventilation openings can be sized according to the cooling needs of the joint

Features and dimensions are subject to change without notice

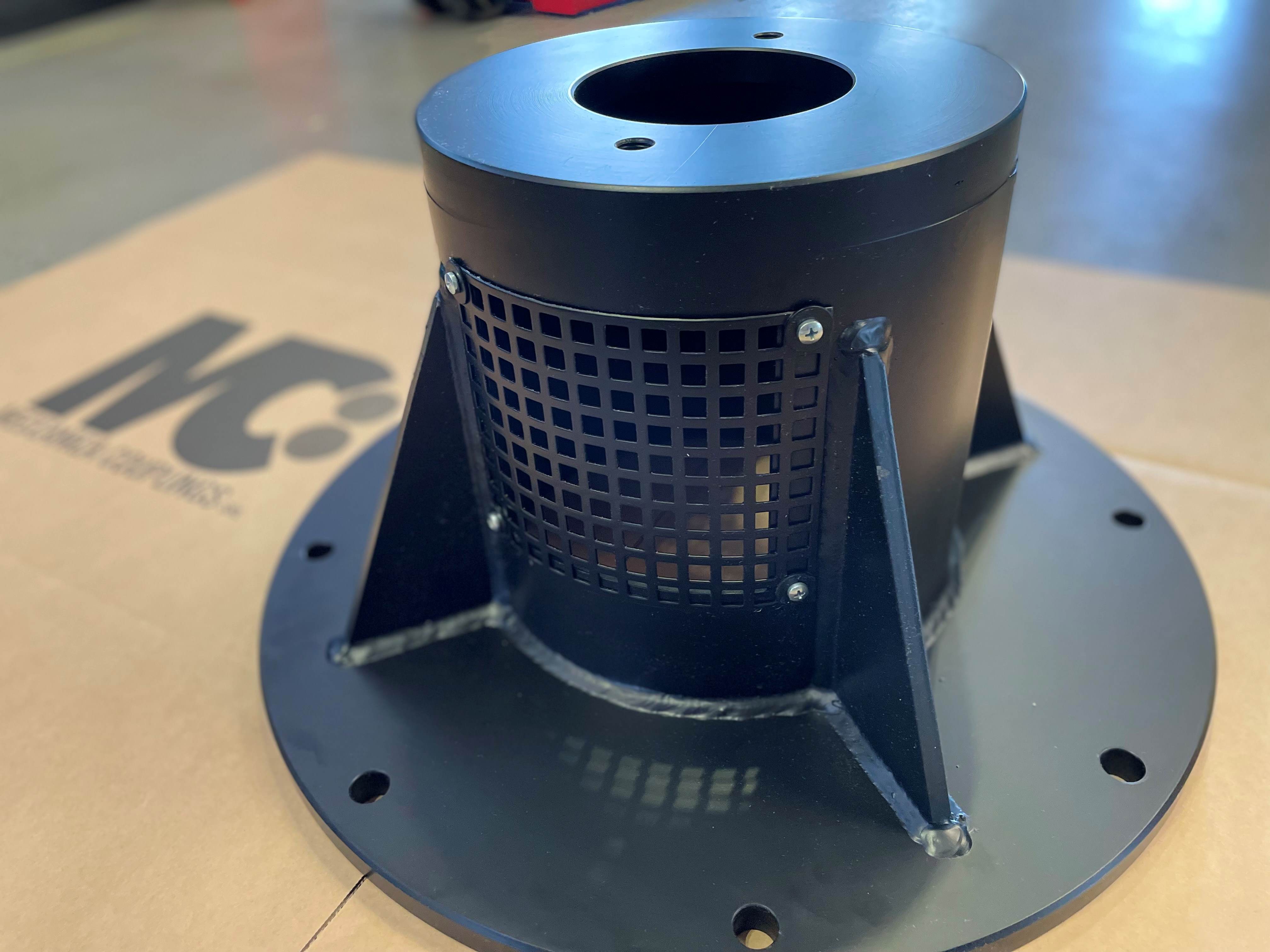

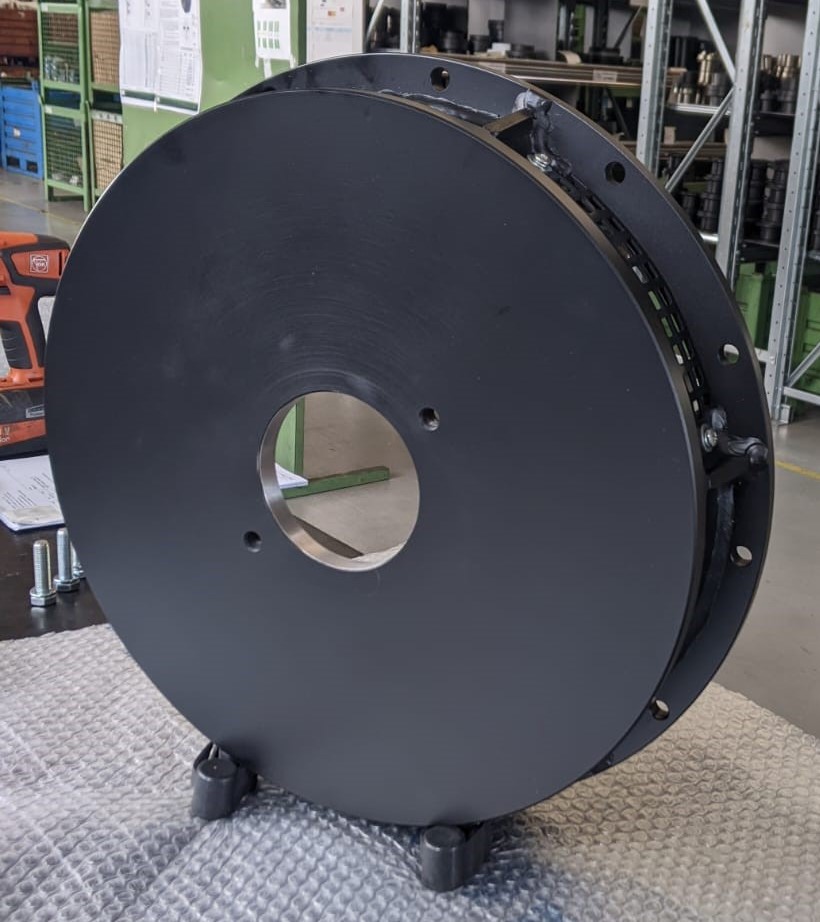

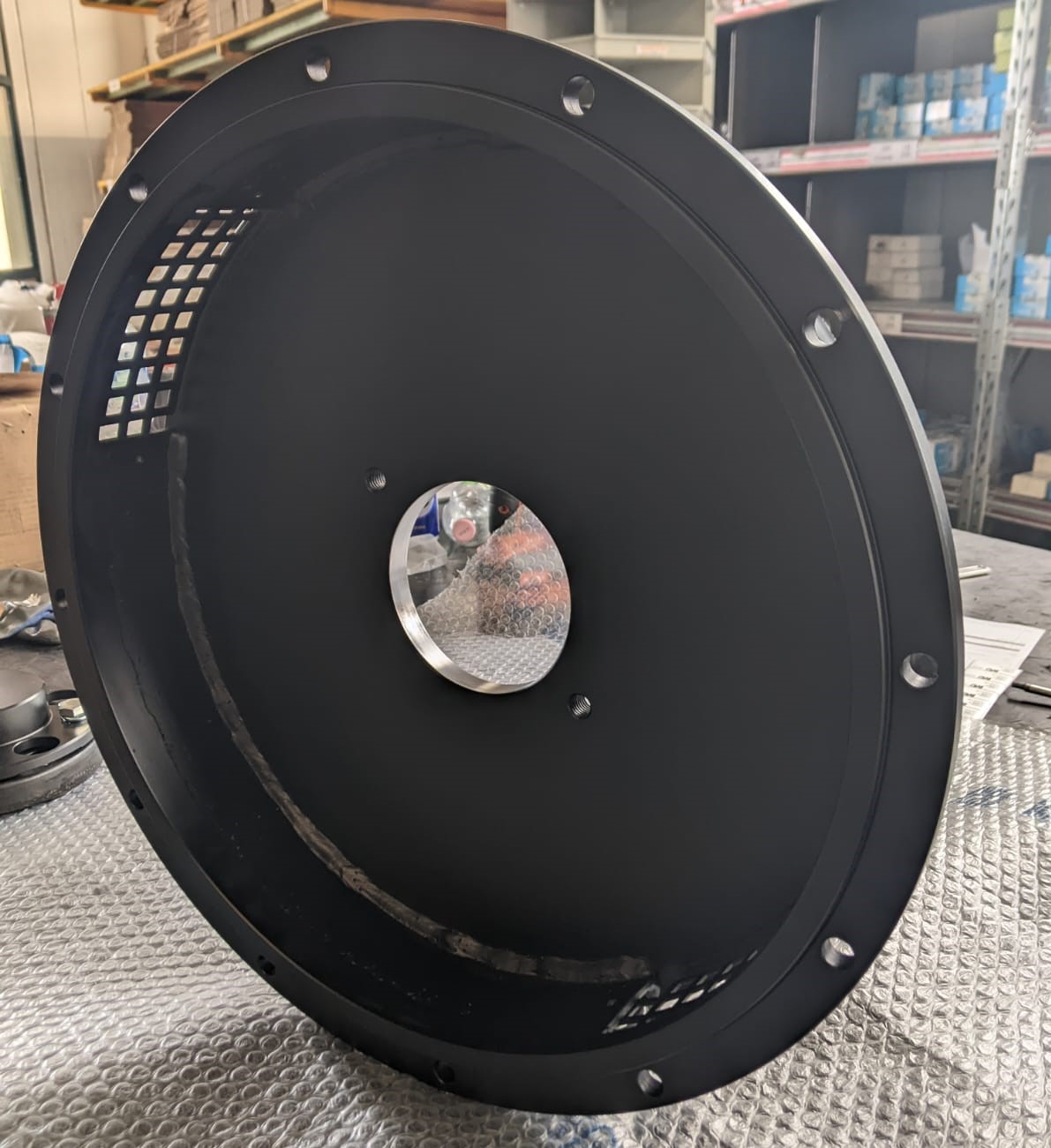

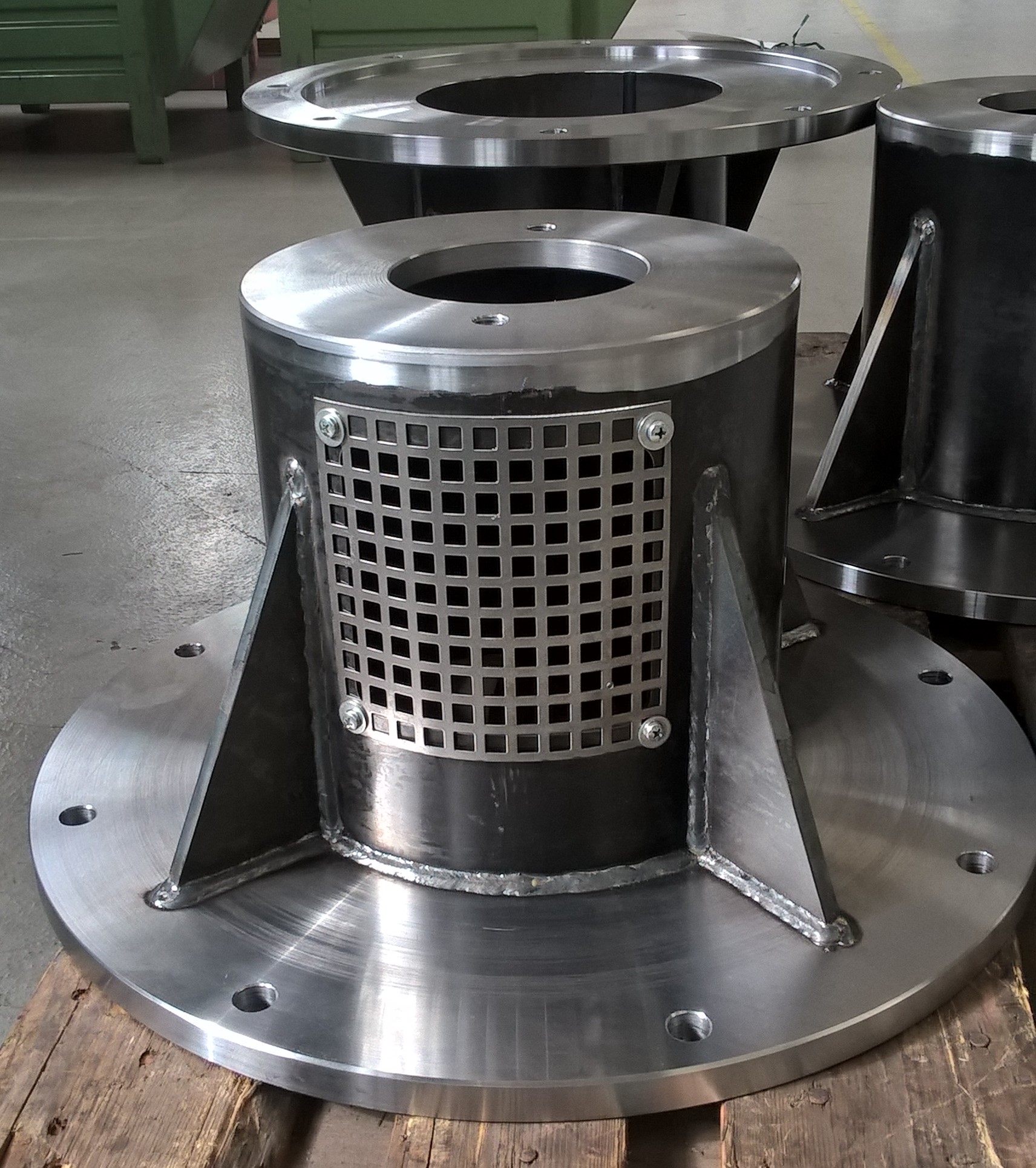

FOTOGALLERY

Request offer

Criteria and recommendations for choosing the joint based on the application.
