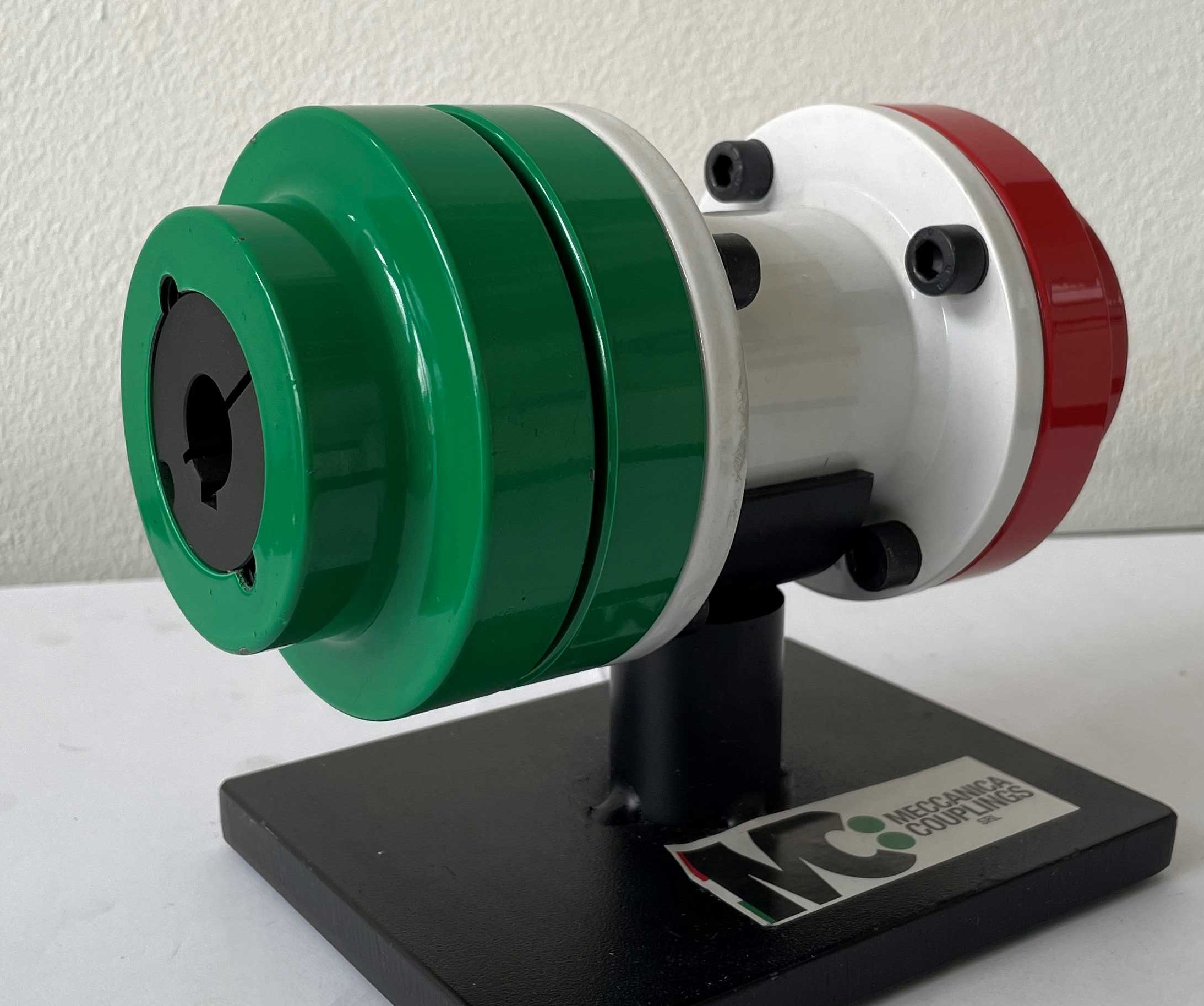

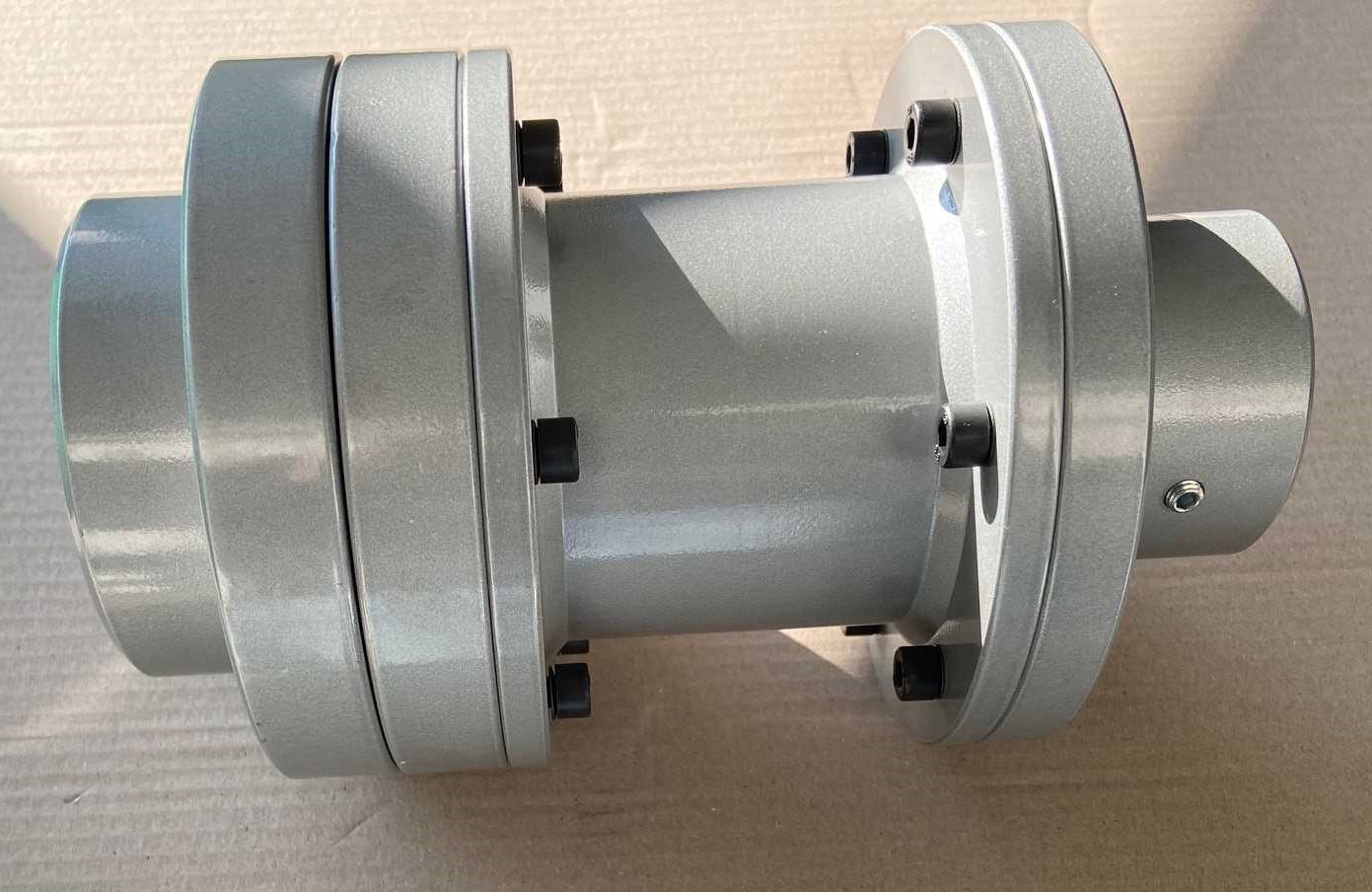

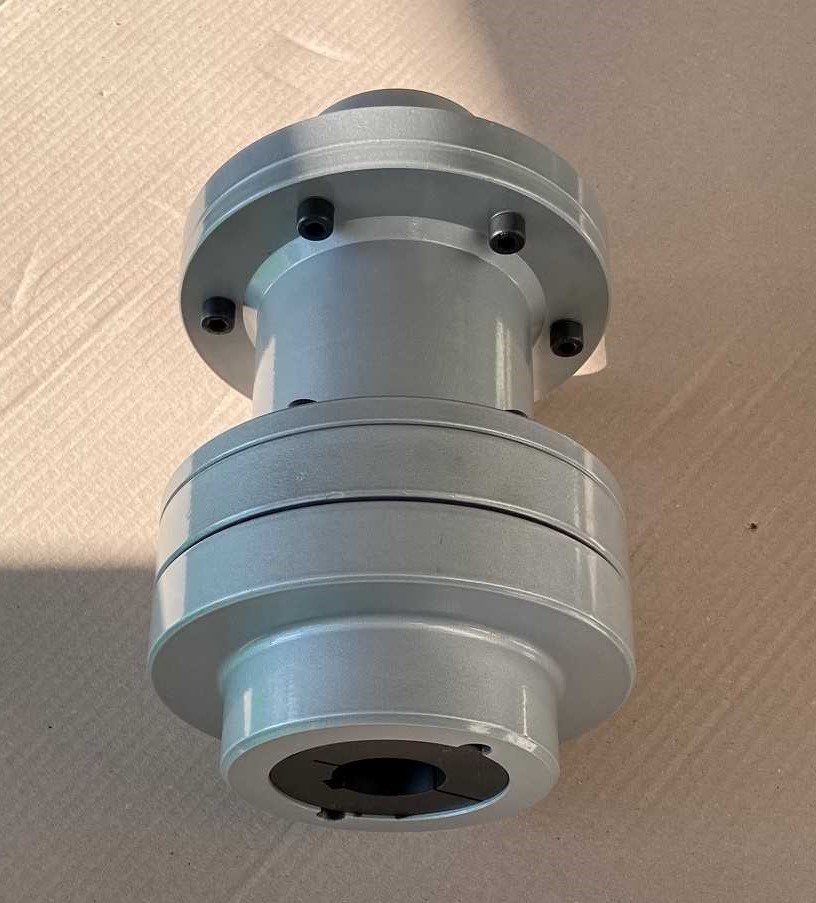

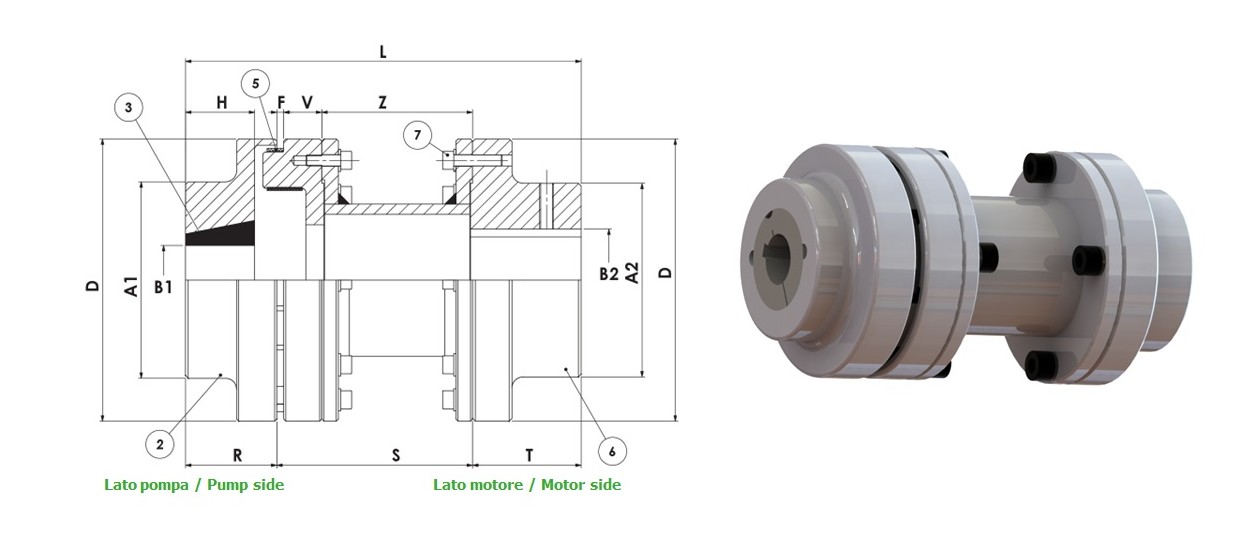

GTBD series

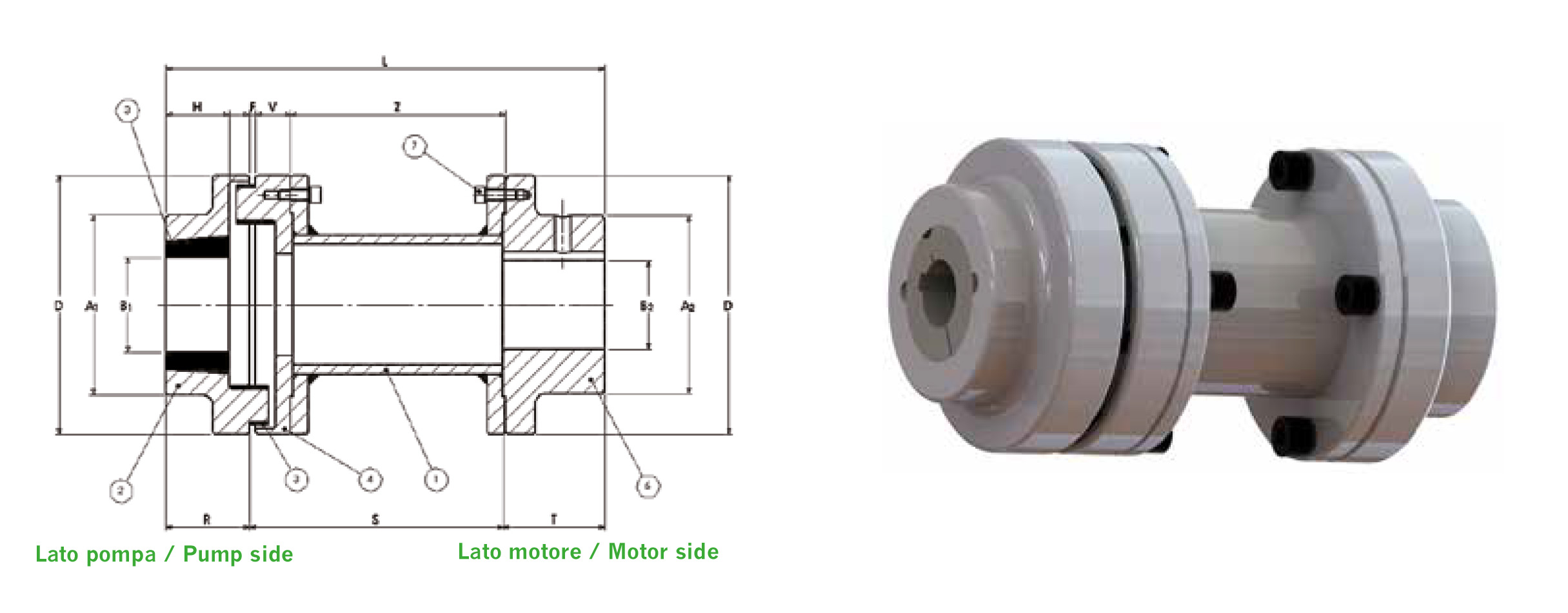

Elastic couplings with spacer and taper bush.

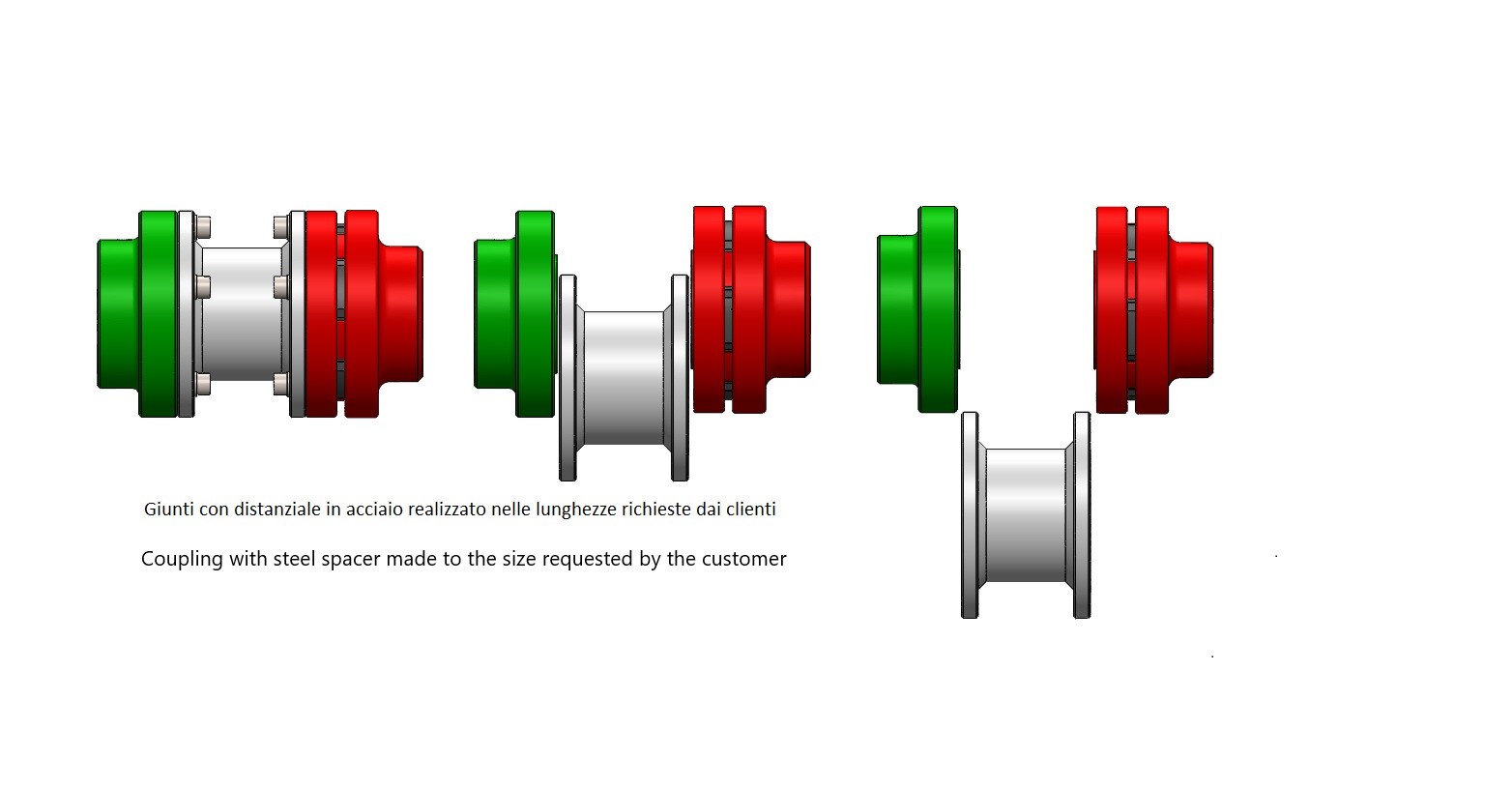

• The spacer is made of steel in the length required by customers.
• The elastic round-shaped inserts absorb shocks and vibrations.
• The round shape of the inserts ensures coupled hubs’ self-centering.
• The toothed hubs/flanges machining includes milling process, which offers the advantage of decreasing the axial thrusts.
• It also ensures a longer life of elastic element because the surface contact between tooth and insert is more regular.
• The rigid hubs are made of steel.
• The couplings are supplied with bore and keyway

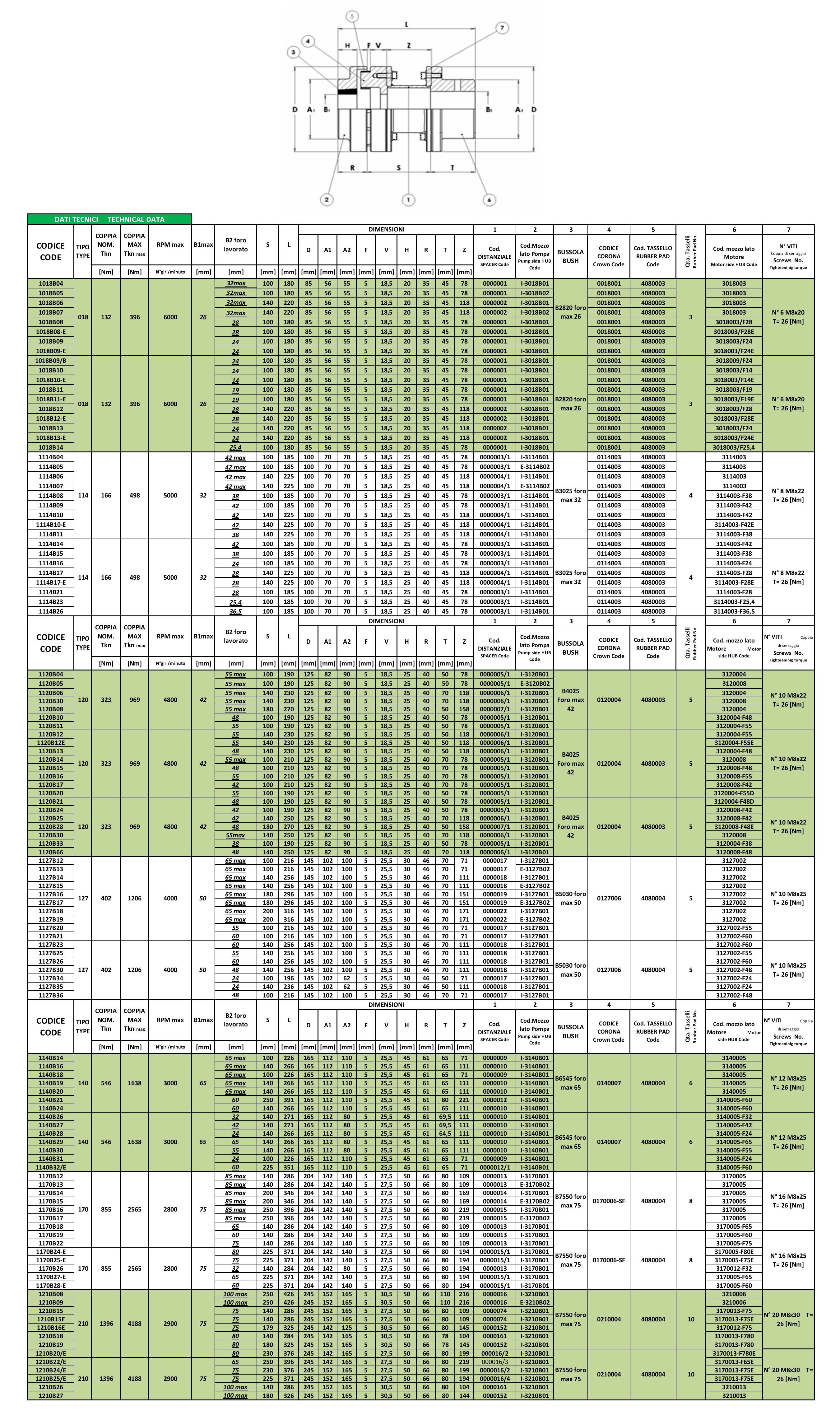

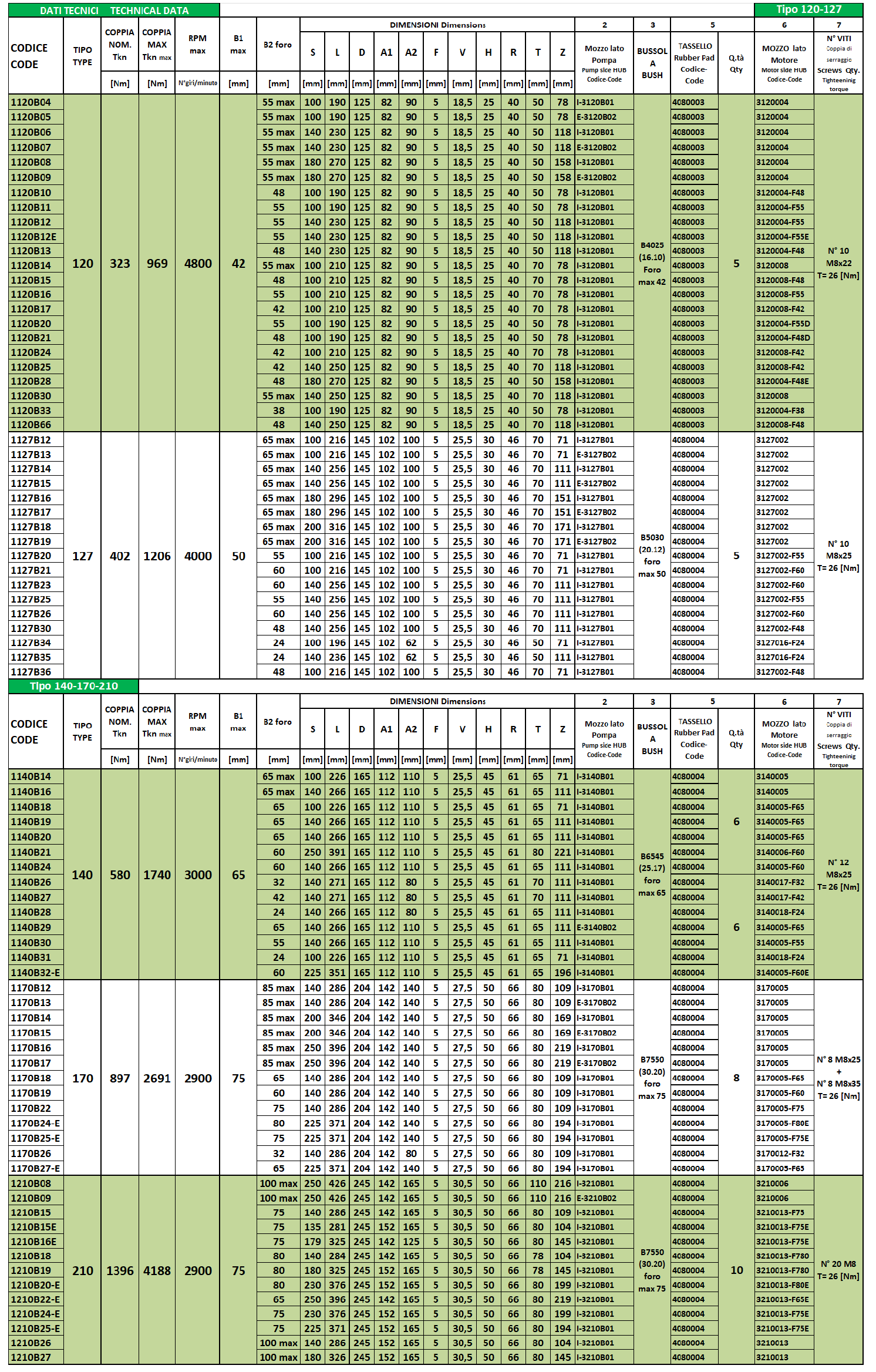

The table show only some models, many others are availble, contact our office for coupling selection.

We can produce special models under reques

• Features and dimensions can be subjected to change without notice.
• Balancing standard from size 127, on request on sizes 114 and 120
• Contact our technical office for coupling selection.

INSTALLATION and ASSEMBLY INSTRUCTIONS are into the package.

Ask a copy to tecnico@meccanicacouplings.it if required.

Purchaser must comply with any applicable safety regulation in the country where the coupling is used
