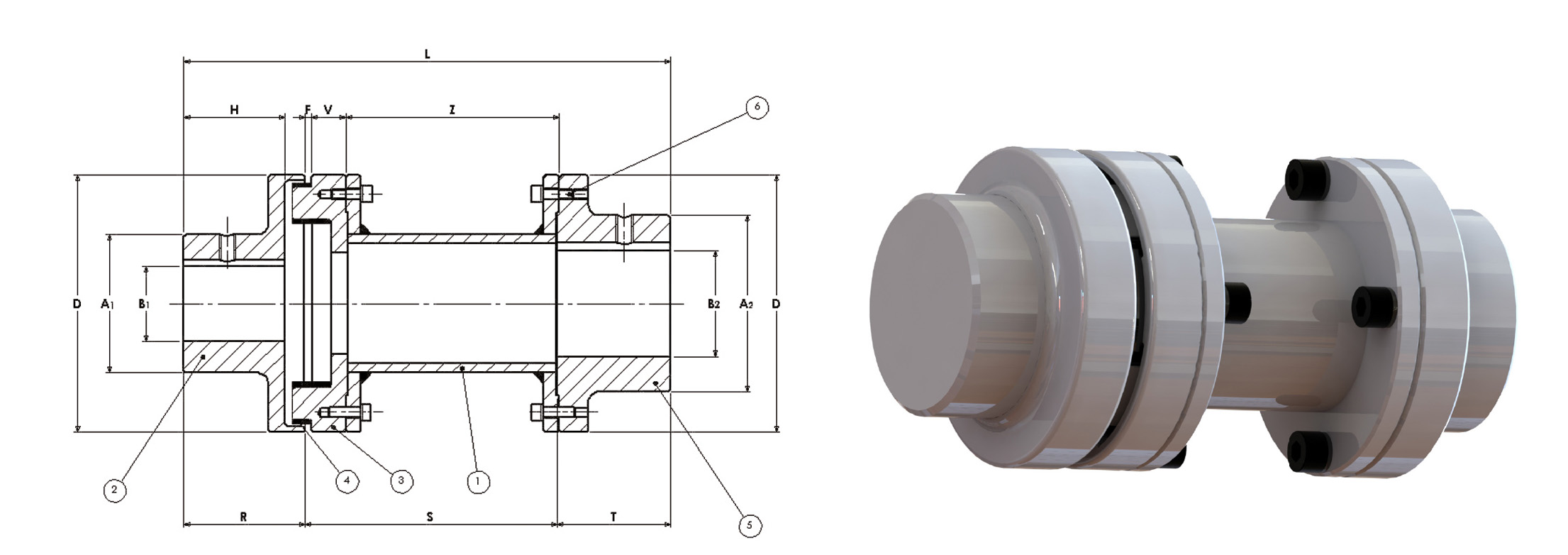

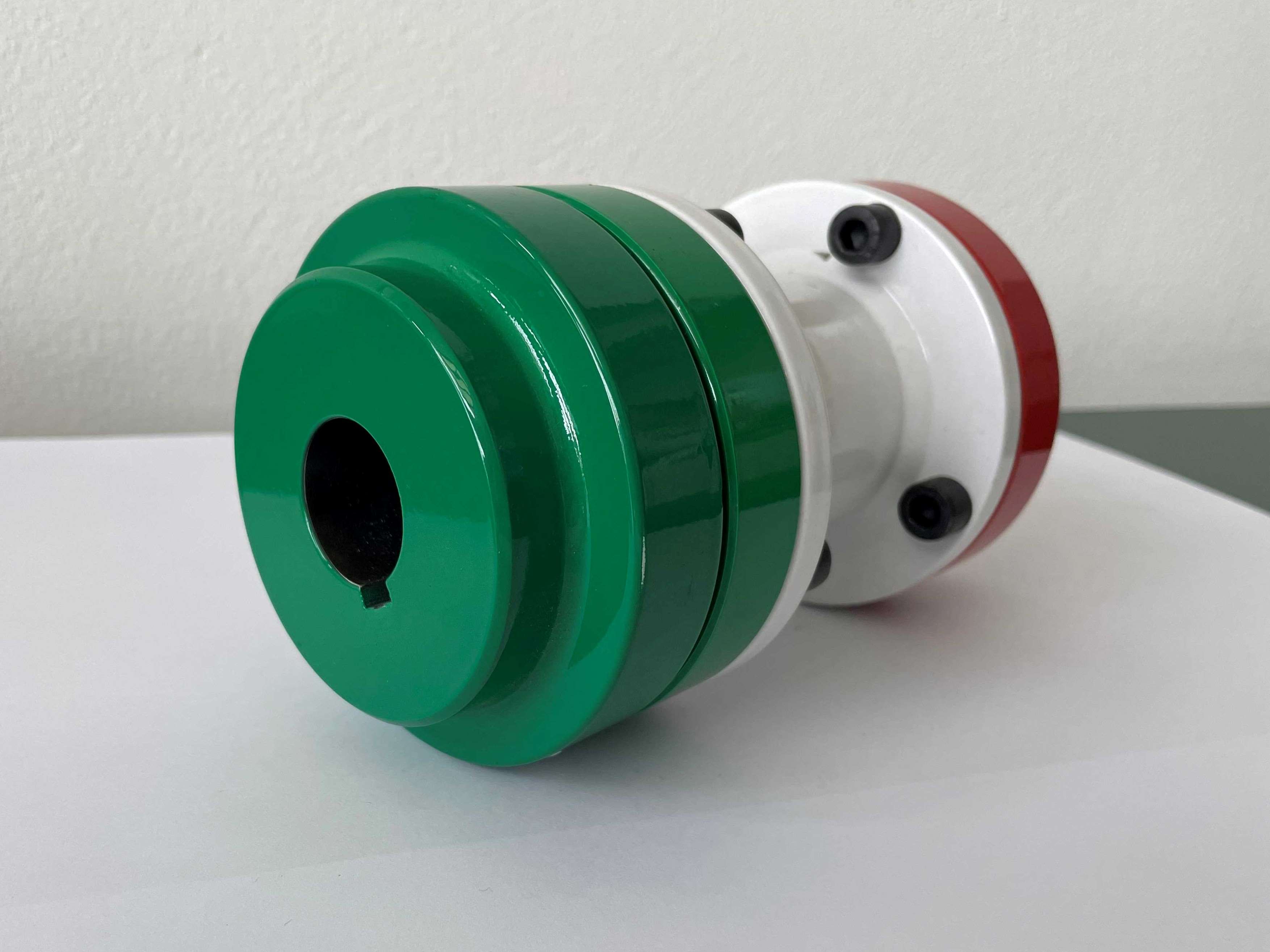

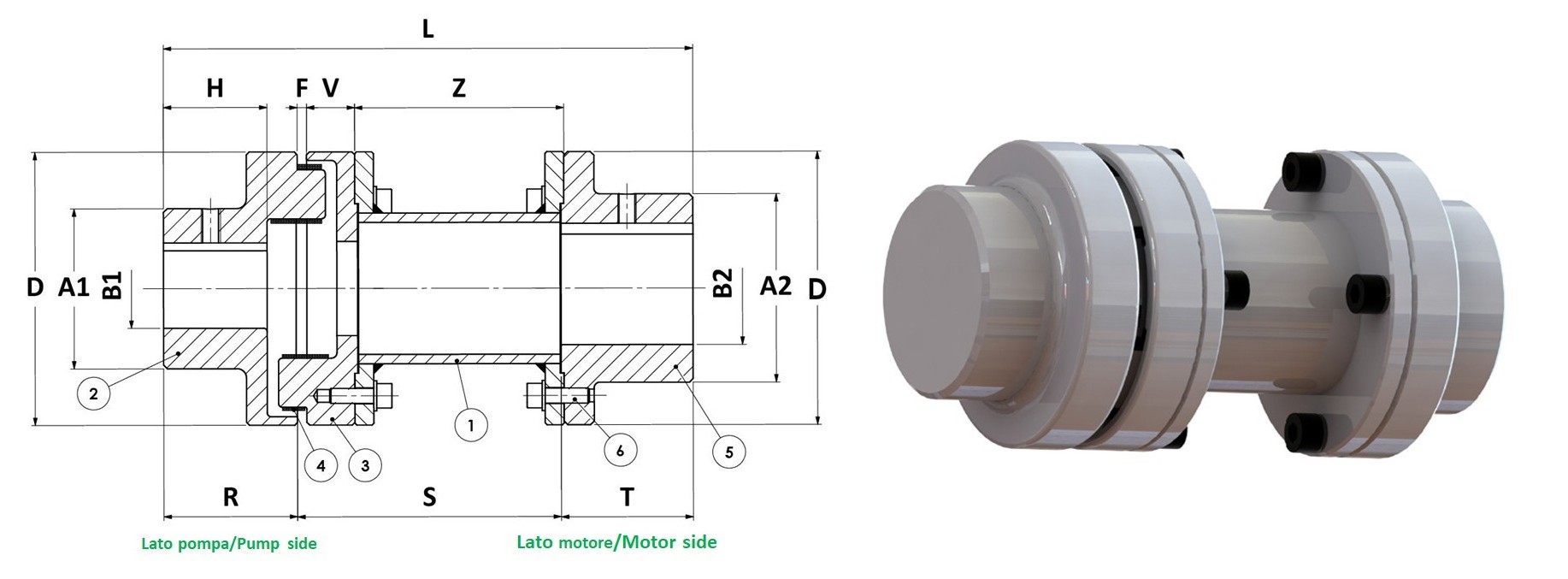

GND series

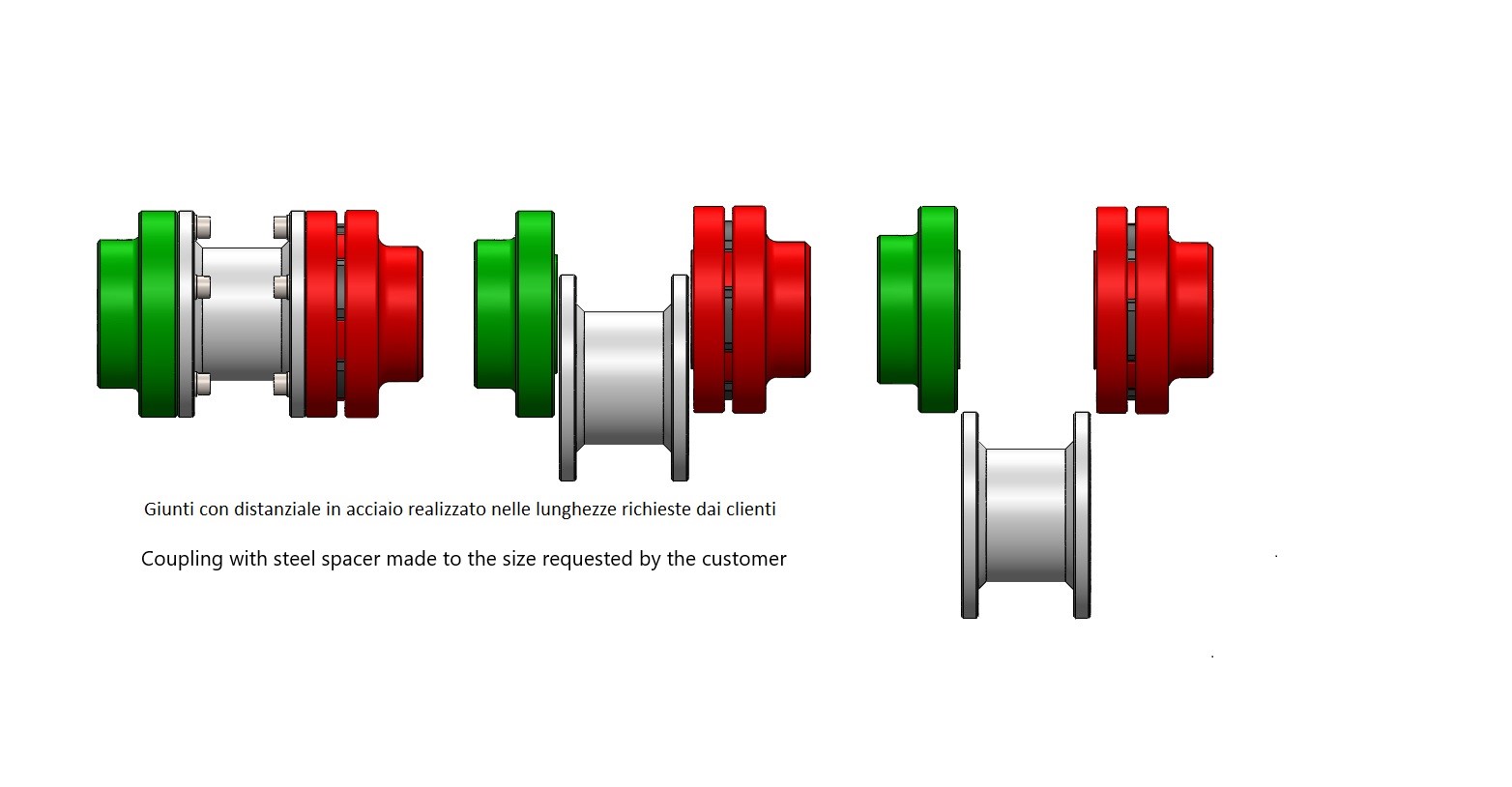

The flexible couplings GND with rubber pads of this series offer the advantage of a spacer that can be be replaced without moving the coupled machines .

• The spacer is made of steel in the length required by customers.

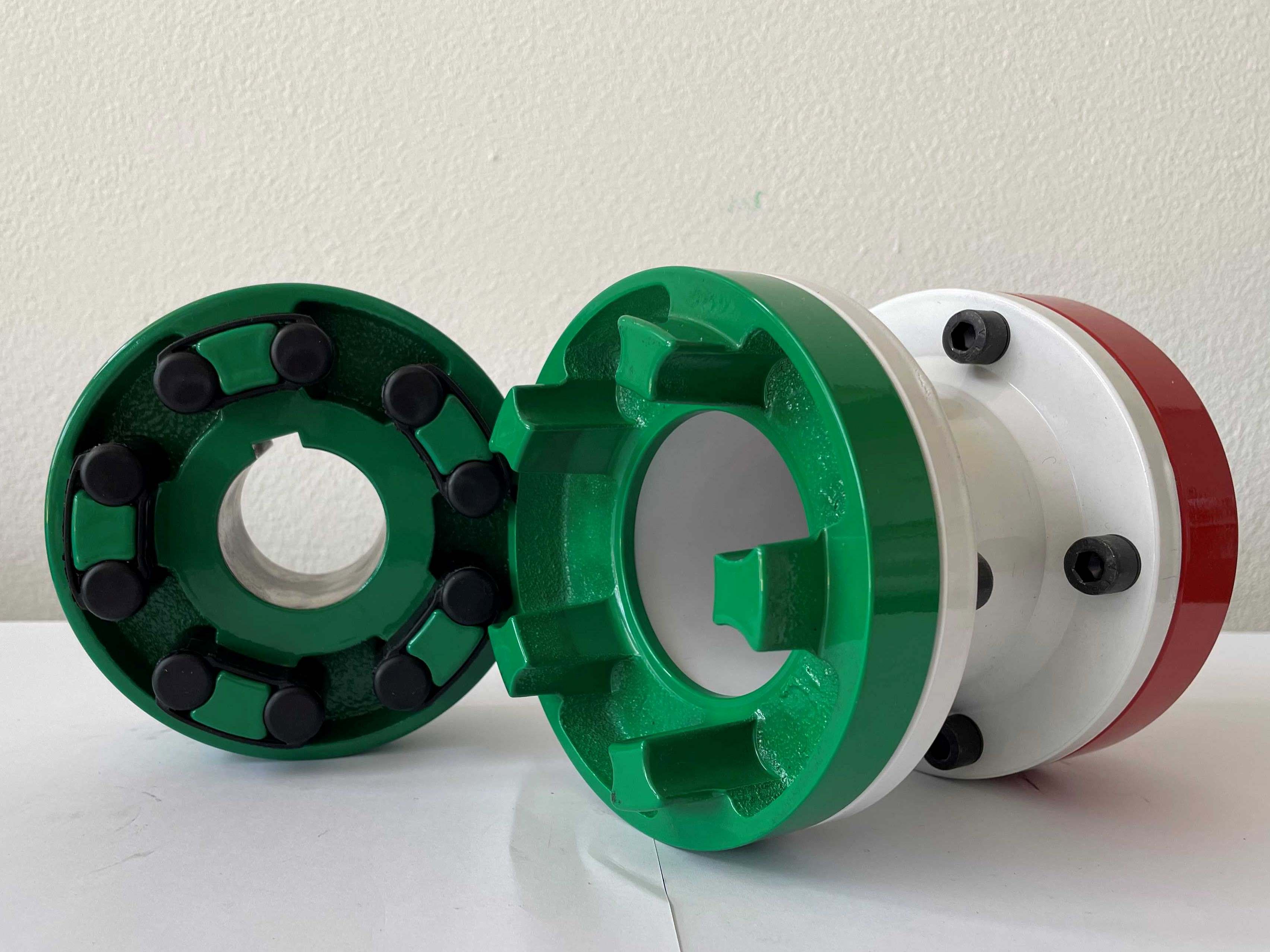

• The elastic round-shaped inserts absorb shocks and vibrations.
• The round shape of the inserts ensures coupled hubs’ self-centering.
• The toothed hubs/flanges machining includes milling process, which offers the advantage of decreasing the axial thrusts.
• It also ensures a longer life of elastic element because the surface contact between tooth and insert is more regular.
• The rigid hubs are made of steel.
• The couplings are supplied with bore and keyway

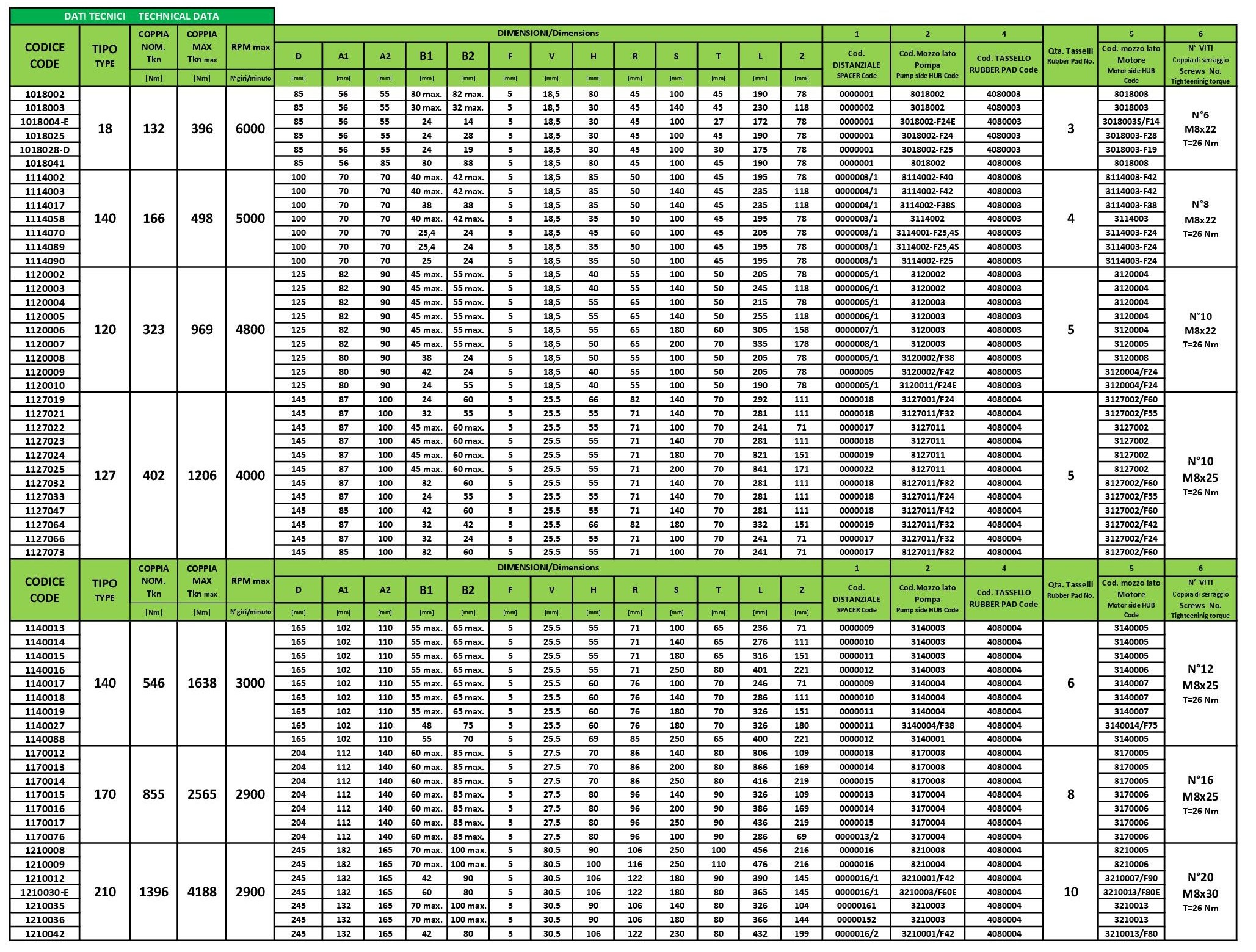

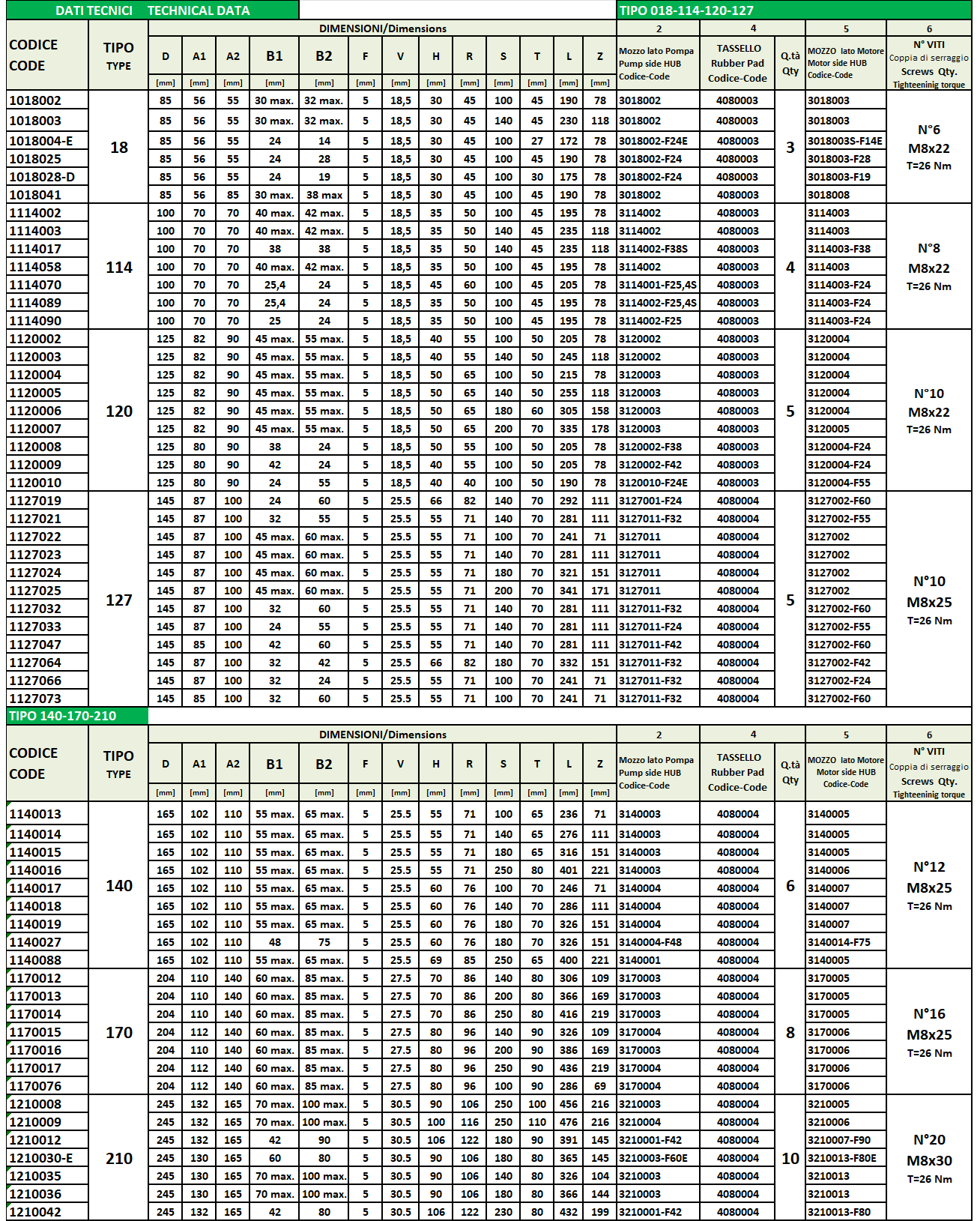

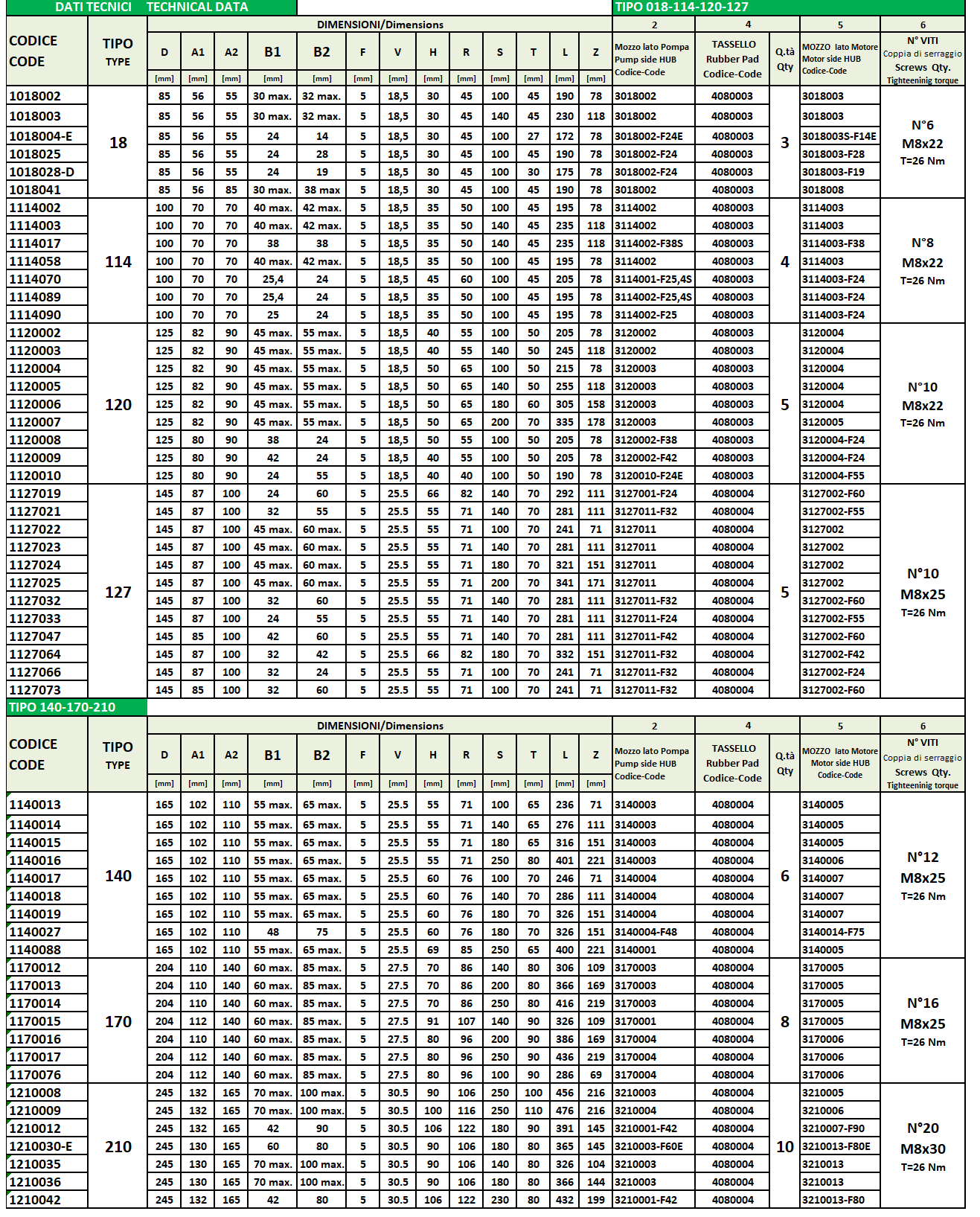

The table shows the codes for the most requested bore and keyway configurations.                                                                                                   Conctact our Technical office for inch bores and for different bore configurations.

• Features and dimensions can be subjected to change without notice.
• Balancing on request after bore and keyway
• Contact our technical office for coupling selection.

INSTALLATION and ASSEMBLY INSTRUCTIONS are into the package.

Ask a copy to tecnico@meccanicacouplings.it if required.

Purchaser must comply with any applicable safety regulation in the country where the coupling is used
