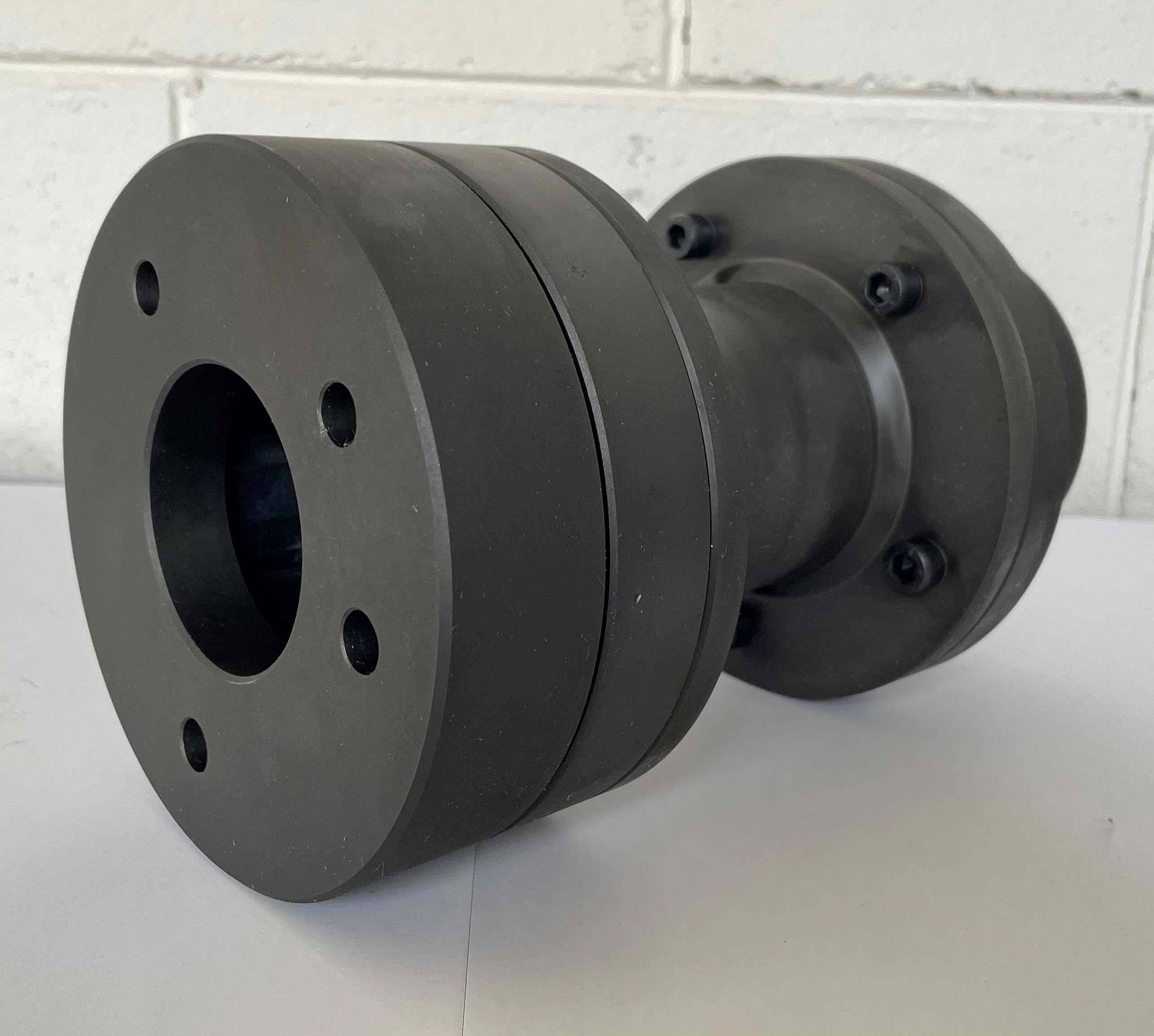

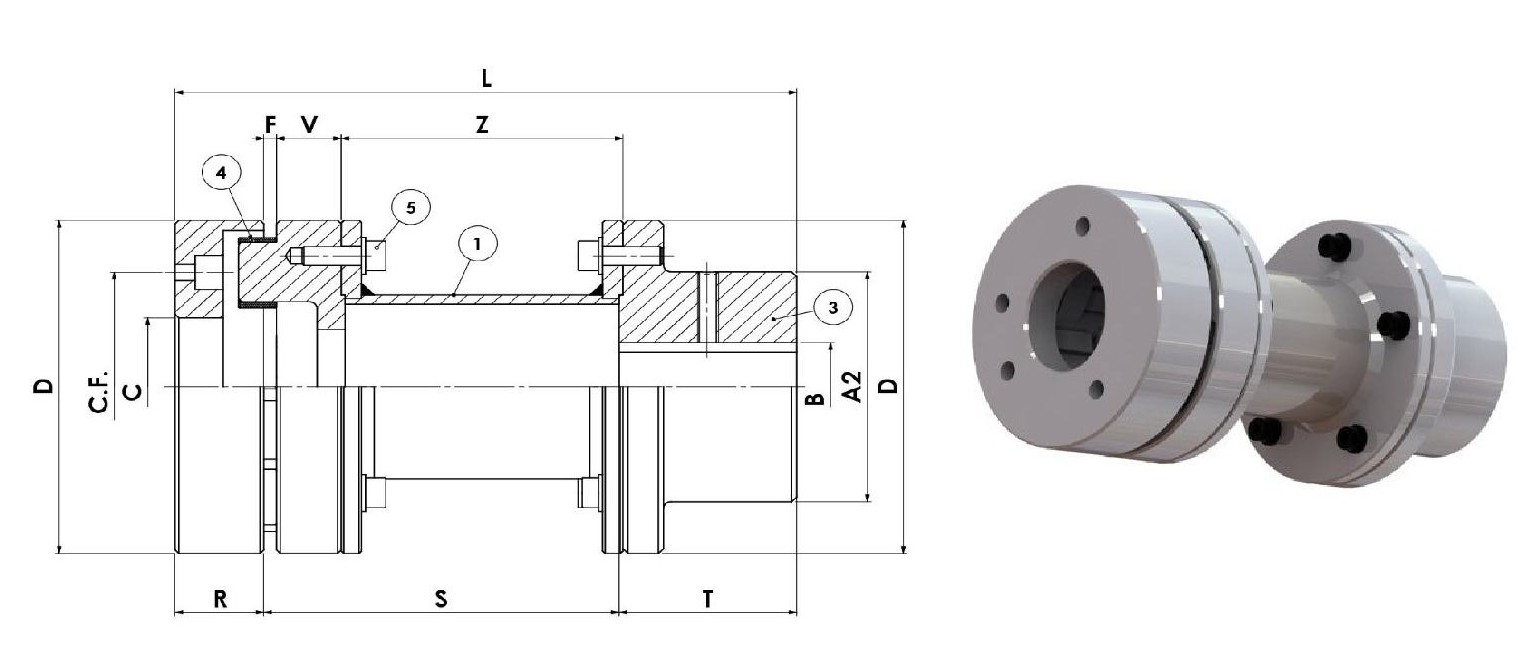

GVSD series

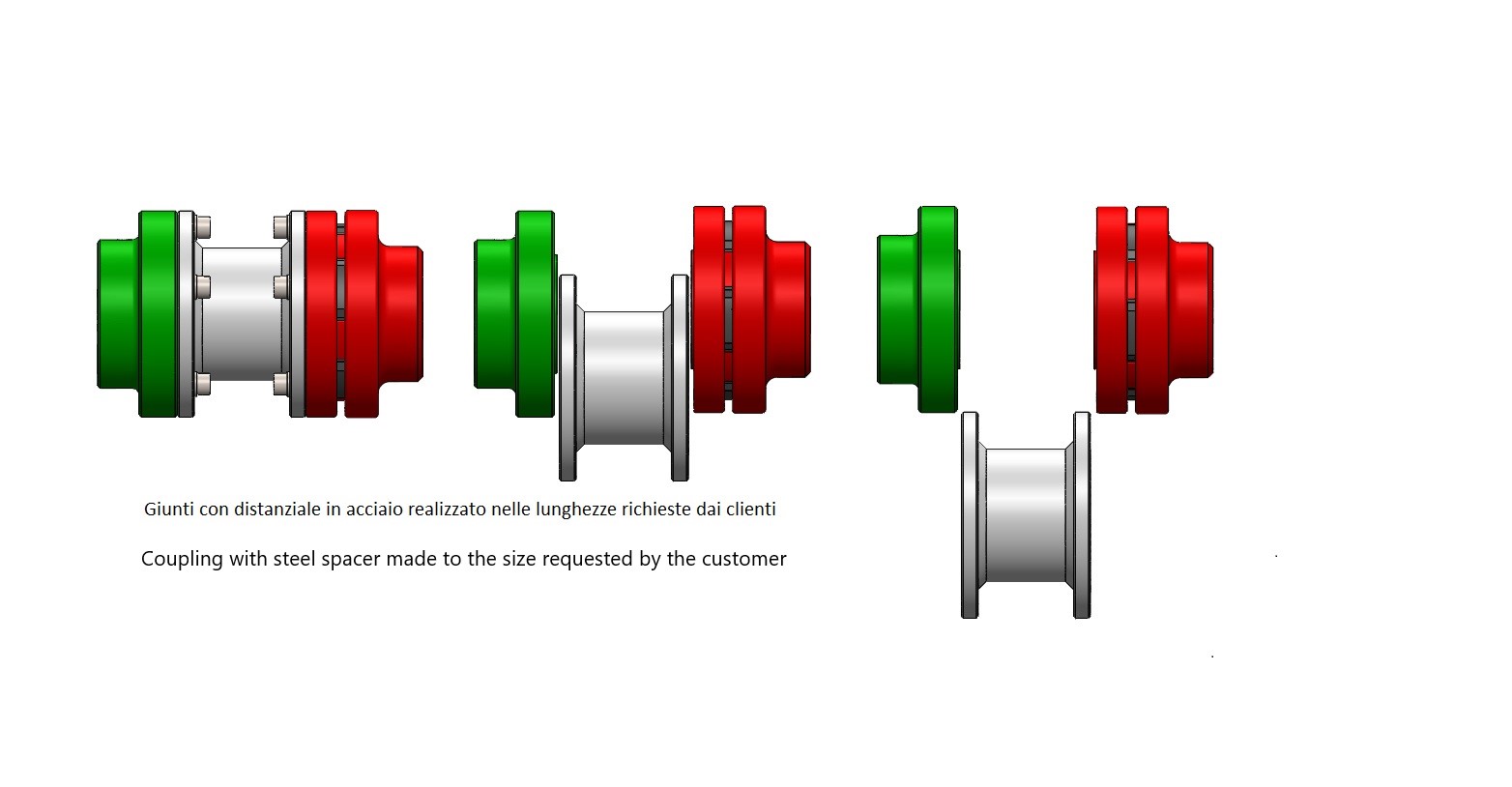

The flexible couplings with rubber pads of this serie offer the advantage of a spacer that can be be replaced without moving the coupled machines .

• The spacer is made of steel in the length required by customers.

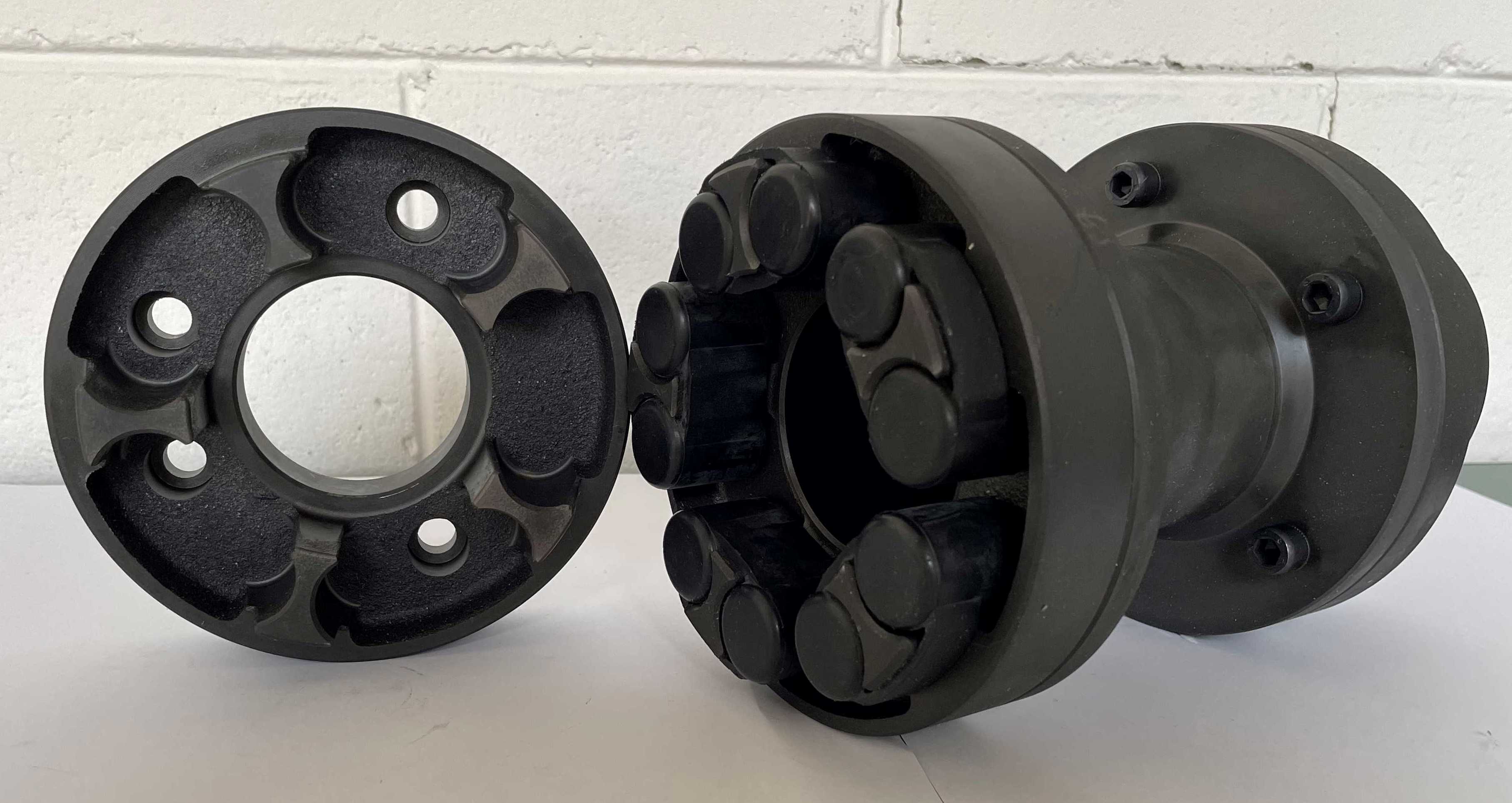

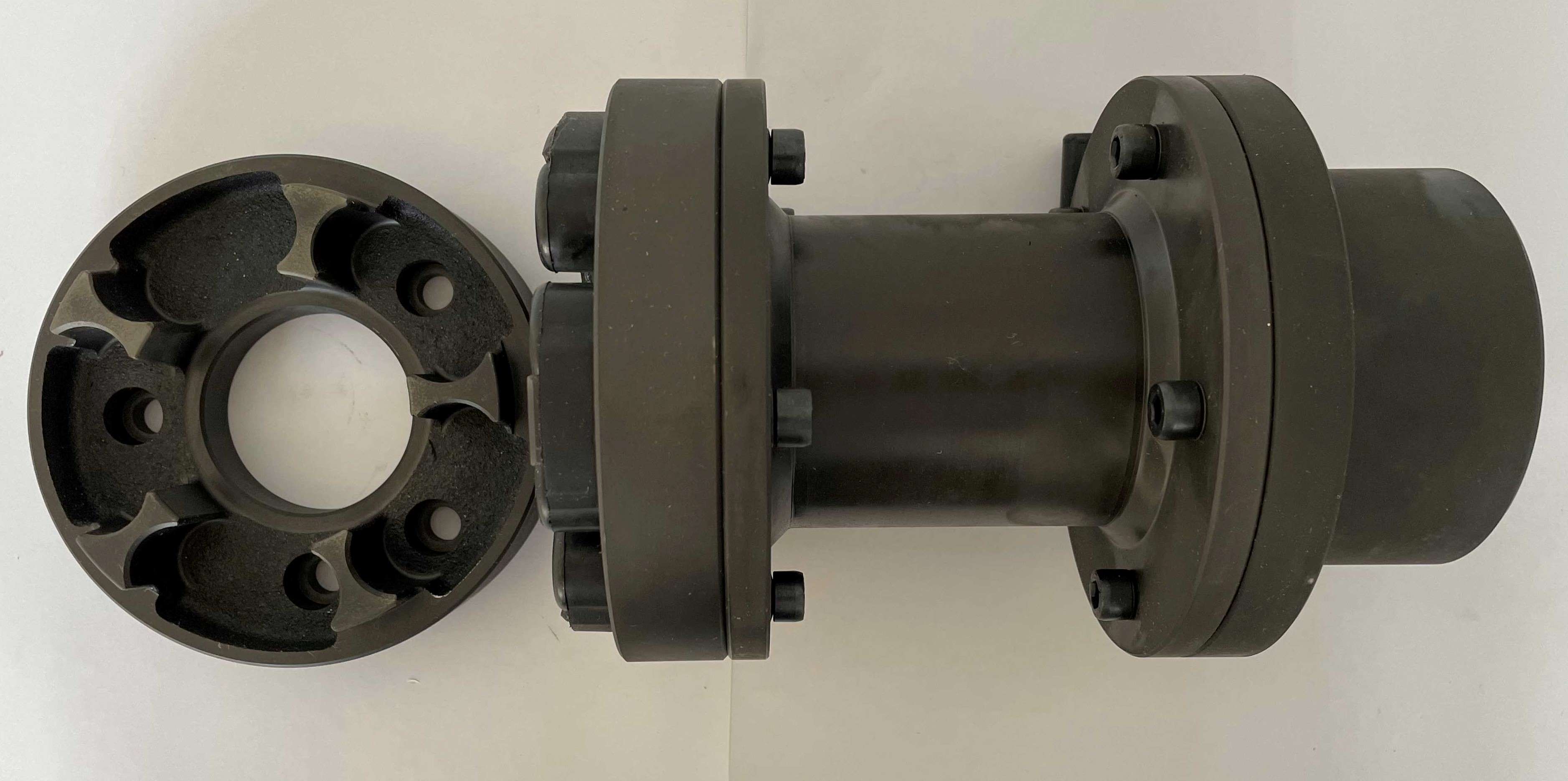

• The elastic round-shaped inserts absorb shocks and vibrations.
• The round shape of the inserts ensures coupled hubs’ self-centering.
• The toothed hubs/flanges machining includes milling process, which offers the advantage of decreasing the axial thrusts.
• It also ensures a longer life of elastic element because the surface contact between tooth and insert is more regular.

The rigid hubs are made of steel. The couplings are supplied with bore and keyway.

The GVSD coupling is ideal for small engines.

• Features and dimensions can be subject to change without notice
• In case of particular applications, please contact our Technical dept.
