GN series

GN couplings are suitable for applications where the driving and driven machine can be moved longitudinally to carry out the replacement of the inserts.

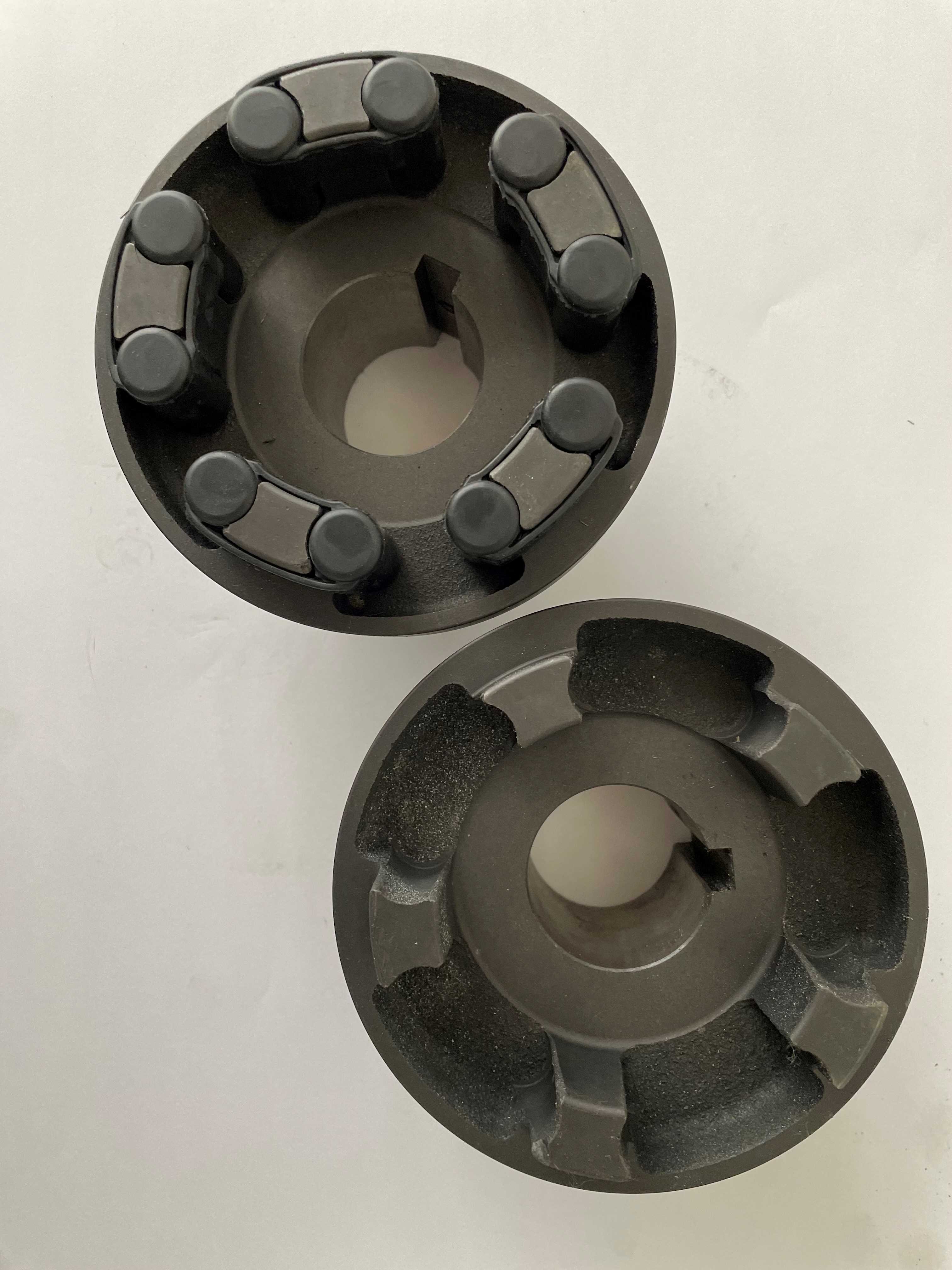

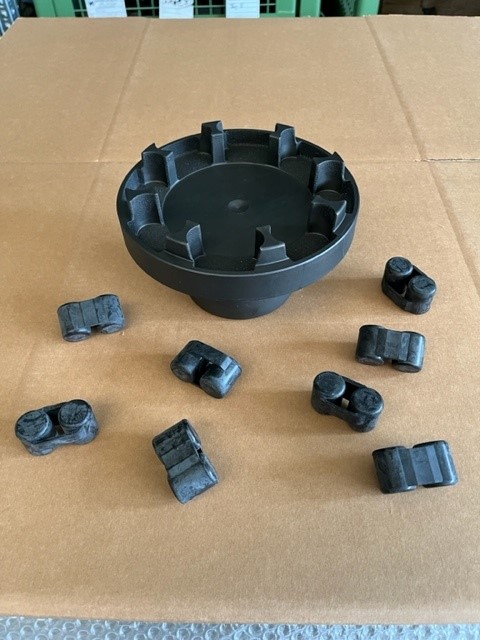

The circular shaped pads absorb shock and vibration. The coupled half-couplings are self-centering due to the circular shape of the insert

The standard machining of the hubs involves the milling of the teeth which offers the following advantages:

• Reduction of casting draft, with consequent reduction of axial thrusts.

• Surface contact  between the tooth and insert more regular, thus ensuring a  longer life of the elastic elements

• Features and dimensions can be subjected to change without notice.


• Balancing on request after bore and keywas

• Contact our technical office for coupling selection.


• INSTALLATION and ASSEMBLY INSTRUCTIONS are inside the package.


Ask a copy to tecnico@meccanicacouplings.it if required.

Purchaser must comply with any applicable safety regulation in the country where the coupling is used
