GNE series

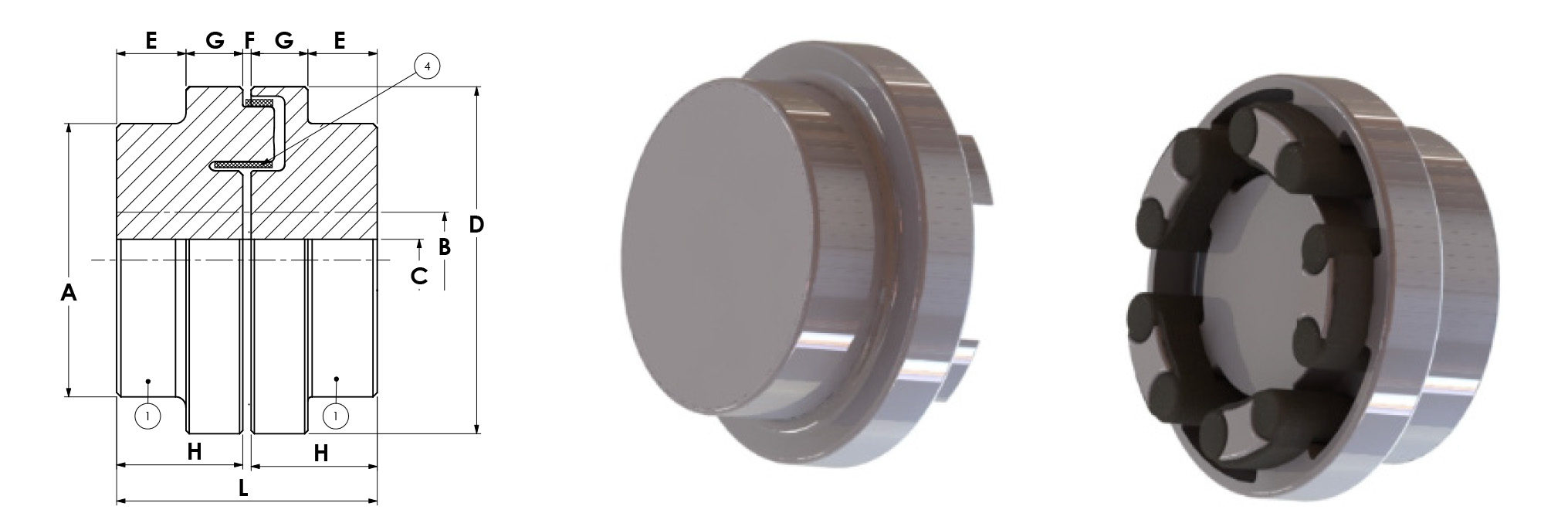

GNE couplings: thanks to reduced londitudinal dimensions, these couplings can be used in application where space between driver and driven unit is short

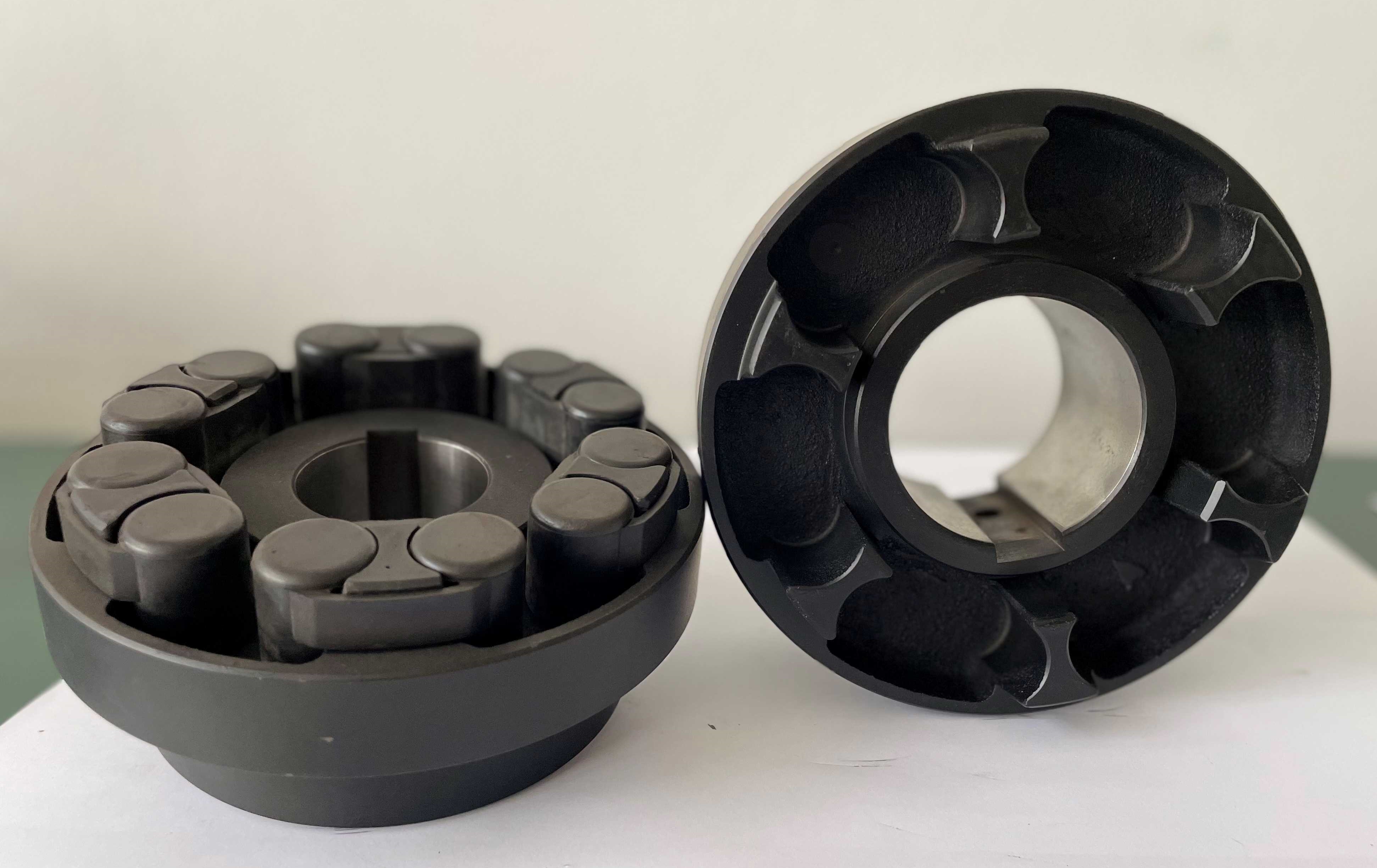

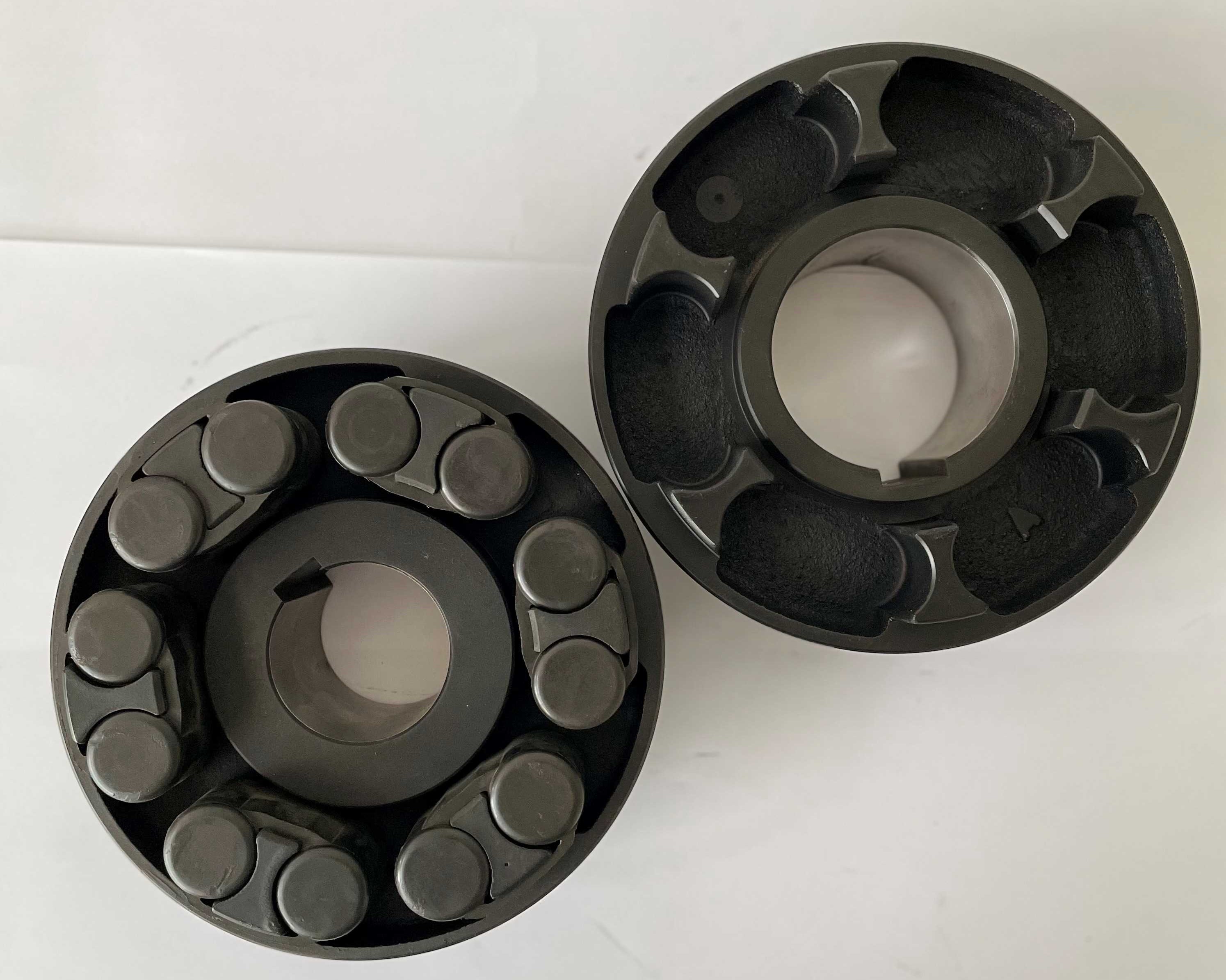

This type of coupling allows absorbing shocks and torsional vibrations, the elastic round-shaped inserts  work under compression ensuring coupling’s self centering

The standard machining of the hubs involves the milling of the teeth which offers the following advantages:

• Reduction of casting draft, with consequent reduction of axial thrusts.
• Surface contact  between the tooth and insert more regular, thus ensuring a  longer life of the elastic elements

• Features and dimensions can be subjected to change without notice.
• Balancing on request after bore and keywas

Contact our technical office for coupling selection.

INSTALLATION and ASSEMBLY INSTRUCTIONS are into the package.

Ask a copy to tecnico@meccanicacouplings.it if required.

Purchaser must comply with any applicable safety regulation in the country where the coupling is used
