GPG series

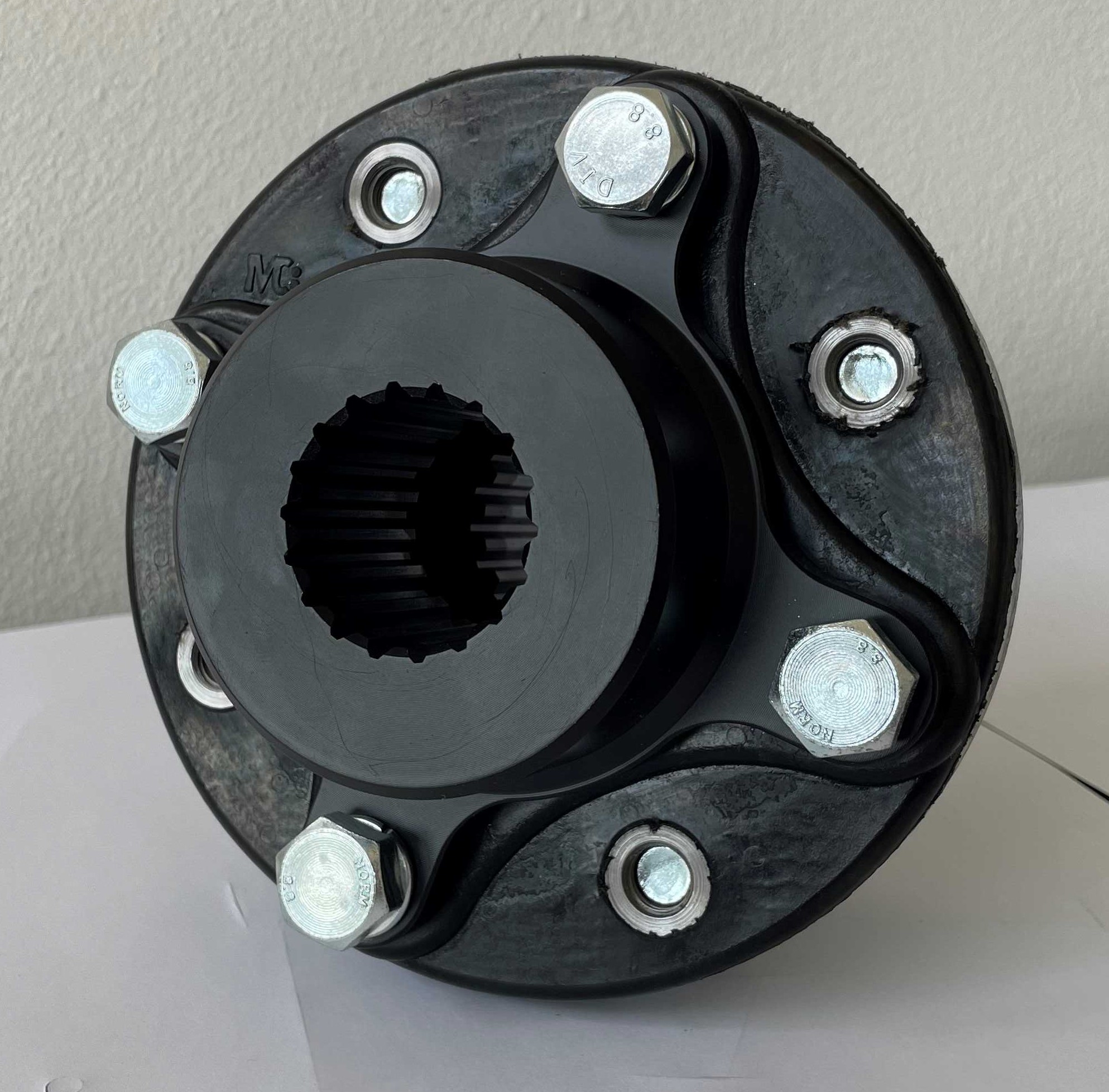

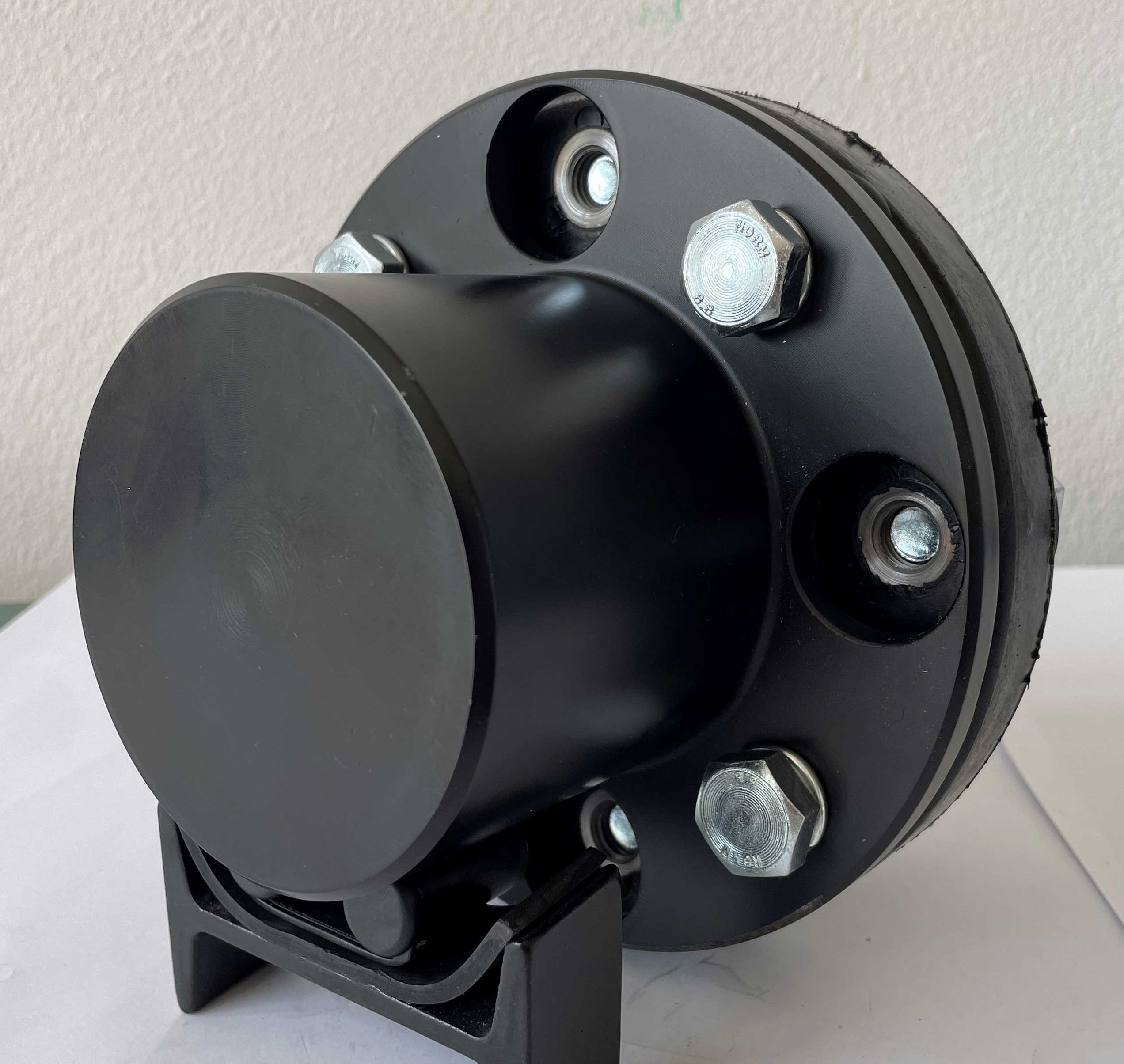

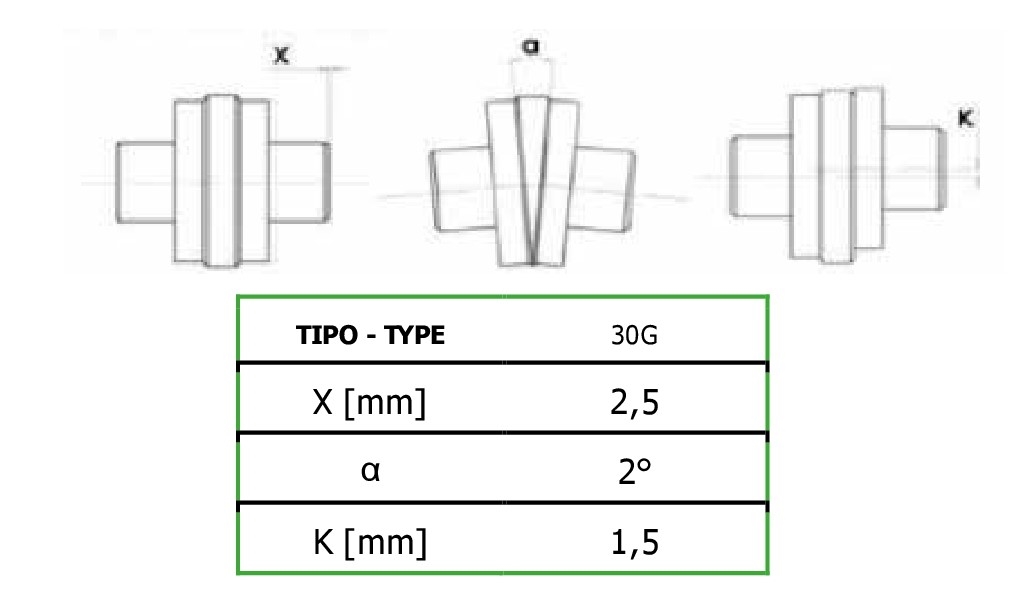

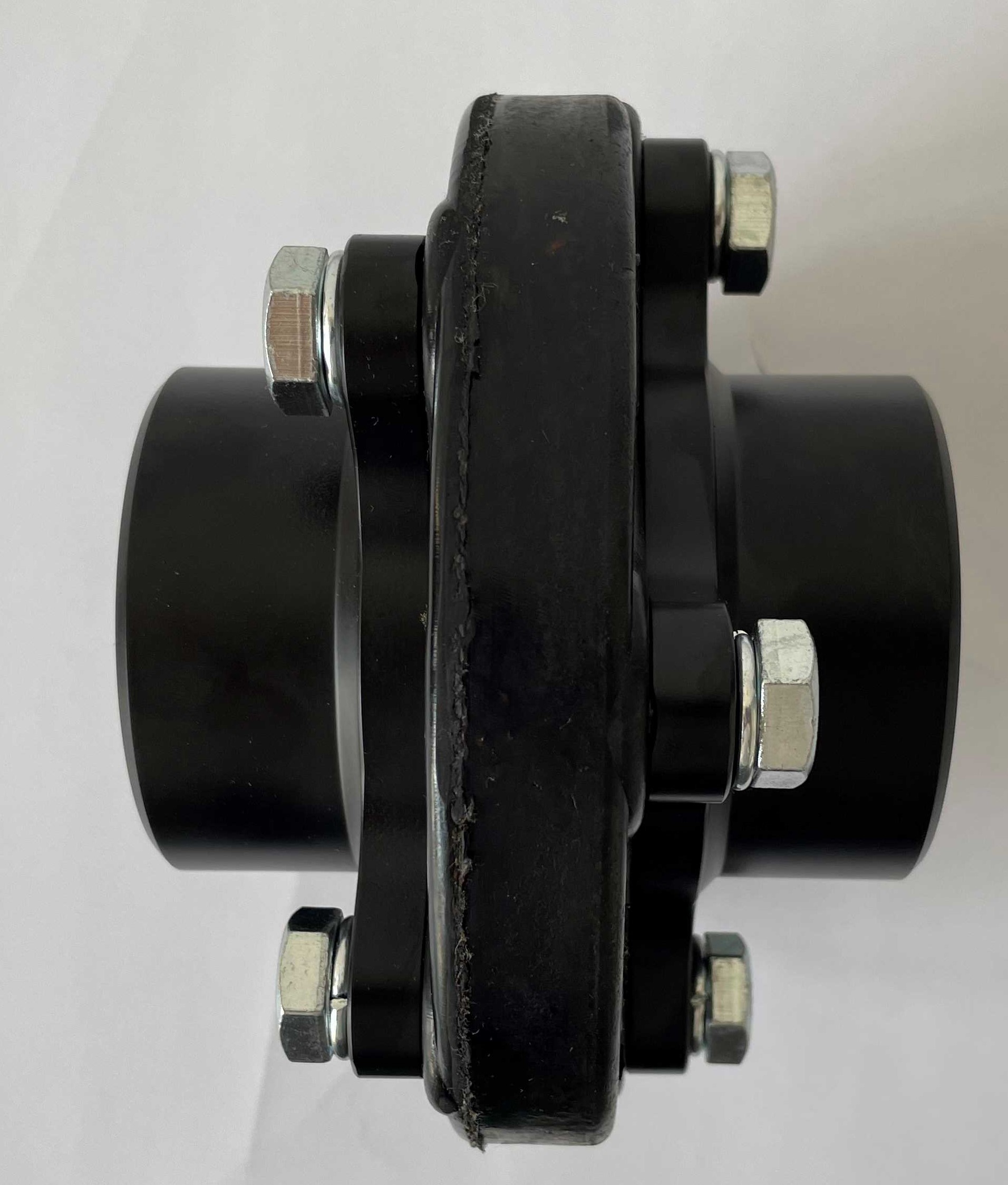

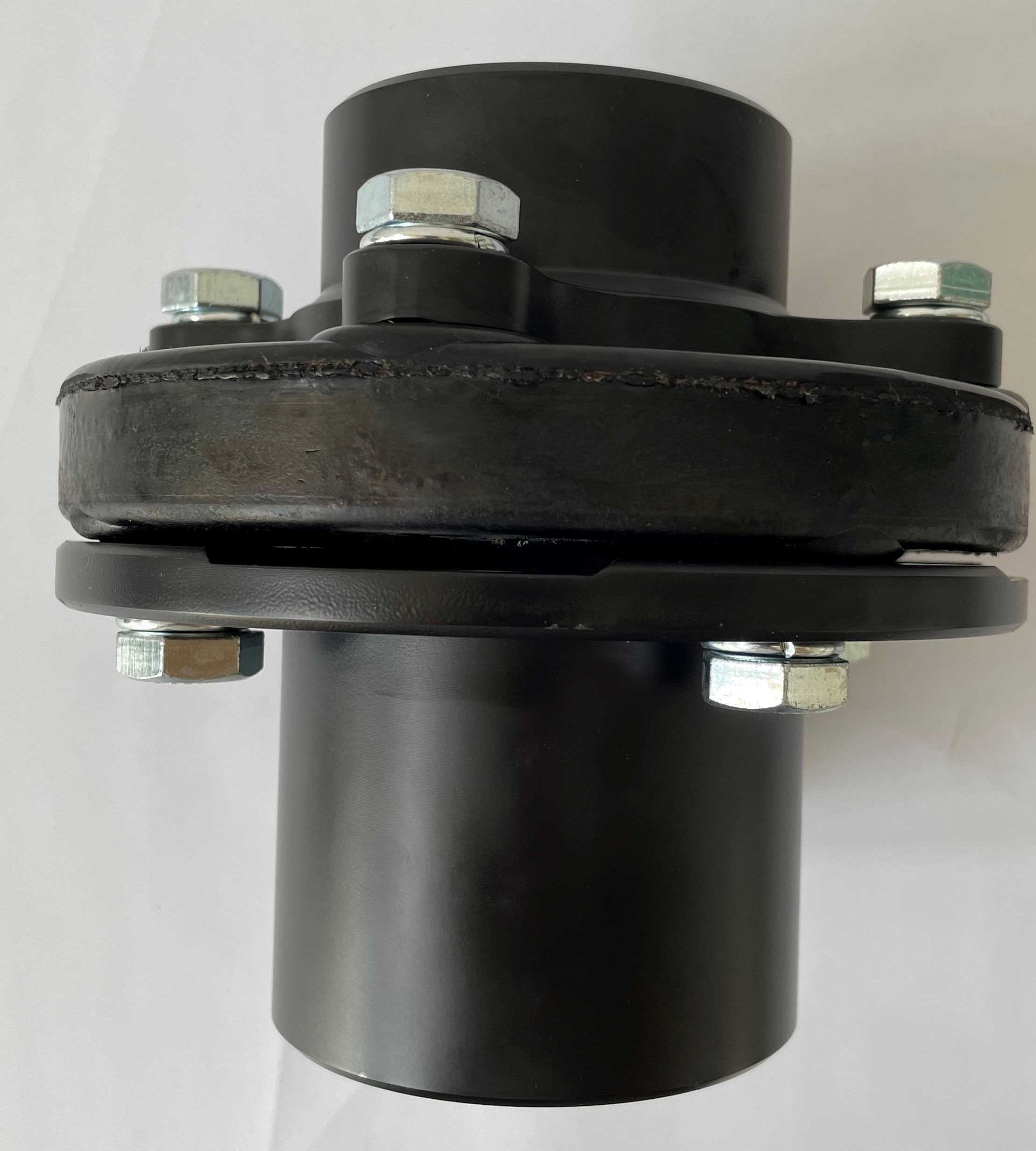

The GPG Transmission Coupling is characterized by an elastic element made of reinforced rubber with nylon inserts. It is suitable for applications facing challenges due to impulsive loads and misalignments, providing effective solutions for operational demands. One of its key features is its ability to handle impulsive loads and misalignments without compromising performance.

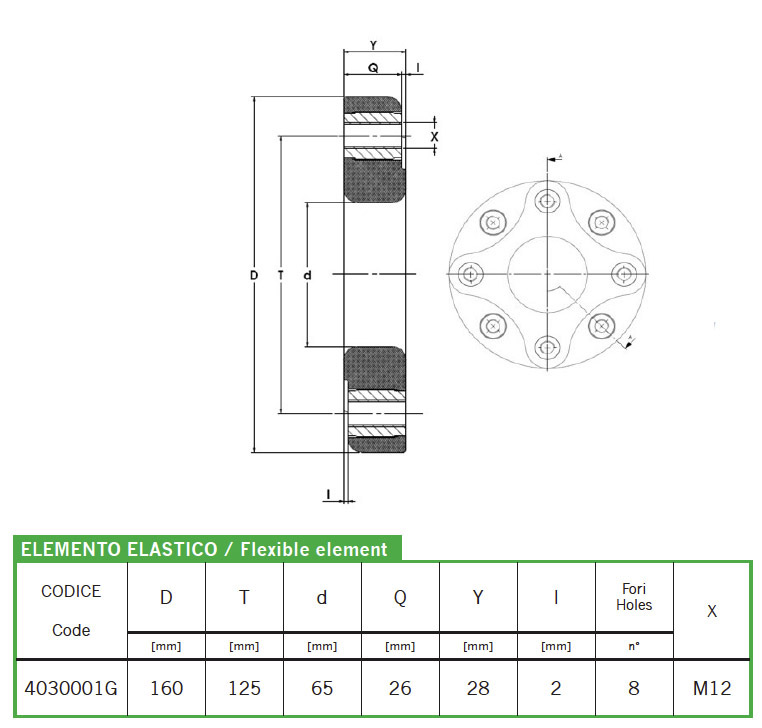

The elastic element, crafted from reinforced rubber and nylon inserts, offers the necessary flexibility to adapt to various load and alignment conditions.

A significant advantage of the GPG Coupling is the ease of replacing the elastic element. It doesn't require the displacement of coupled machines, enabling a quick and convenient replacement without prolonged production interruptions.

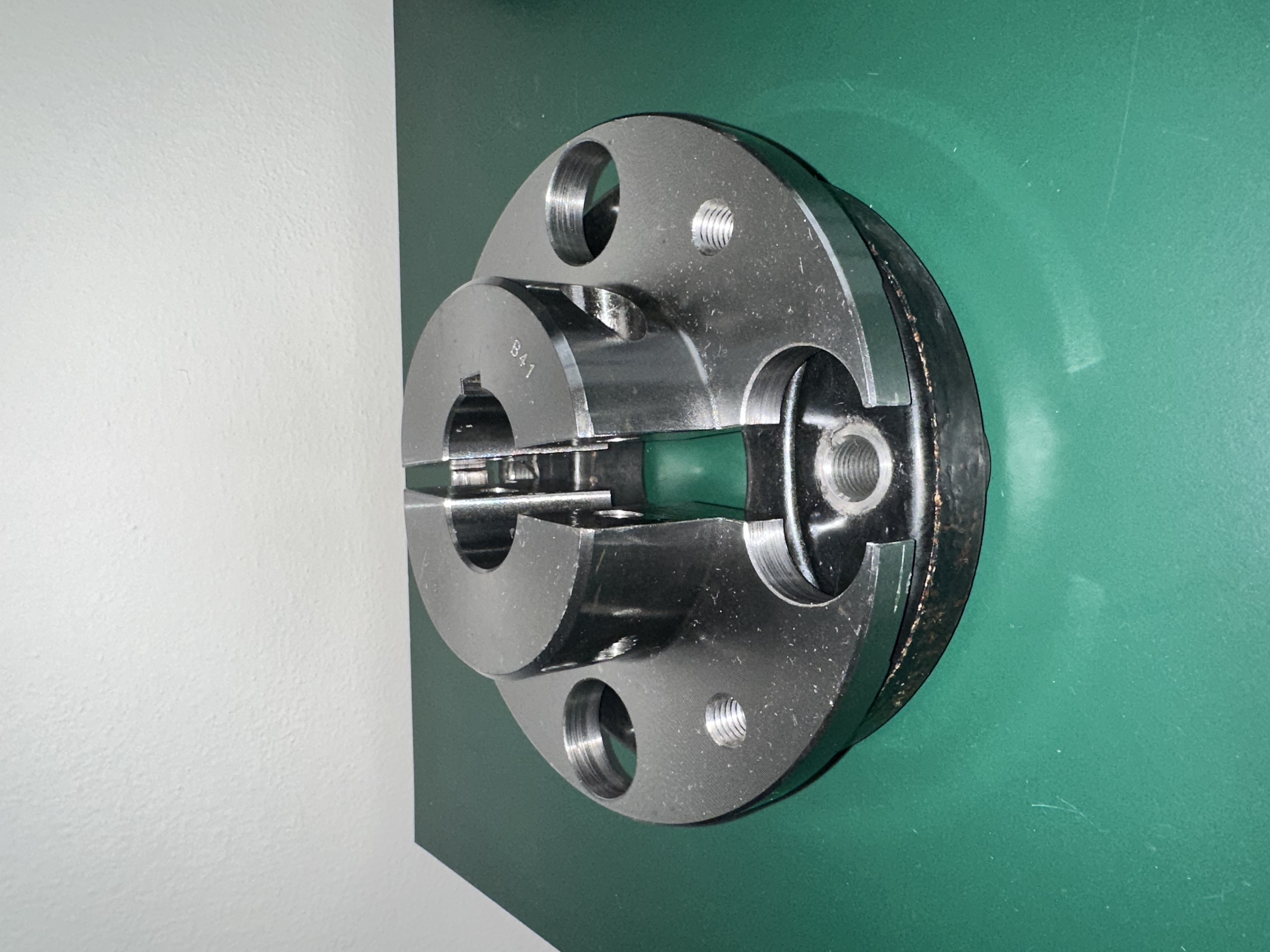

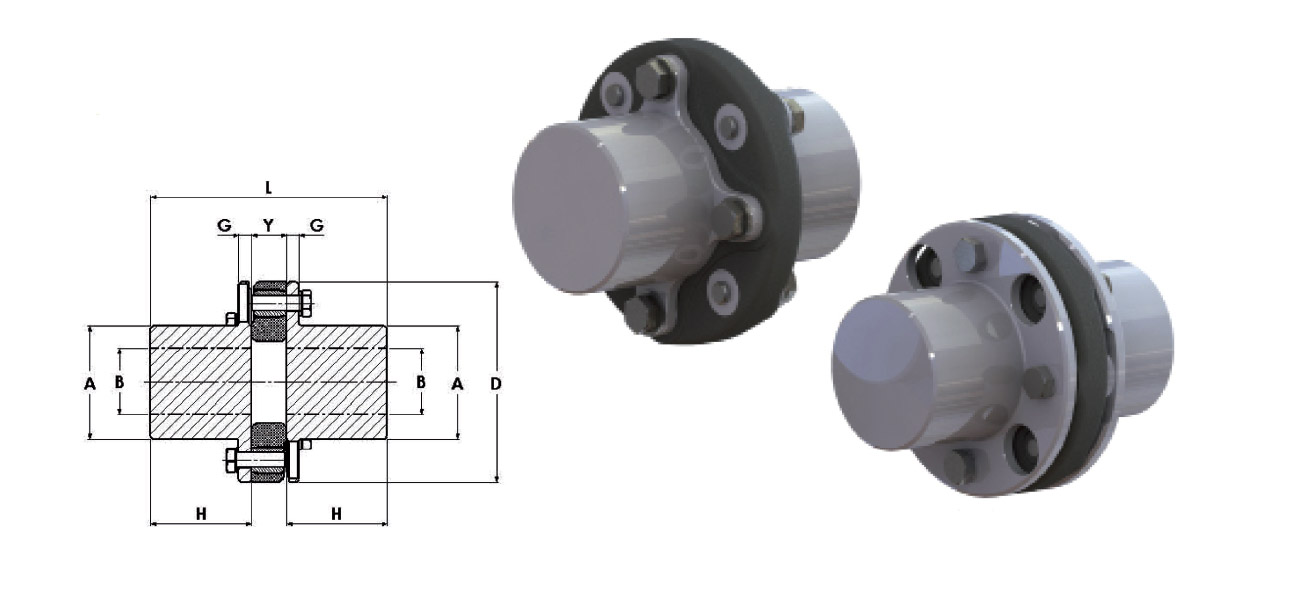

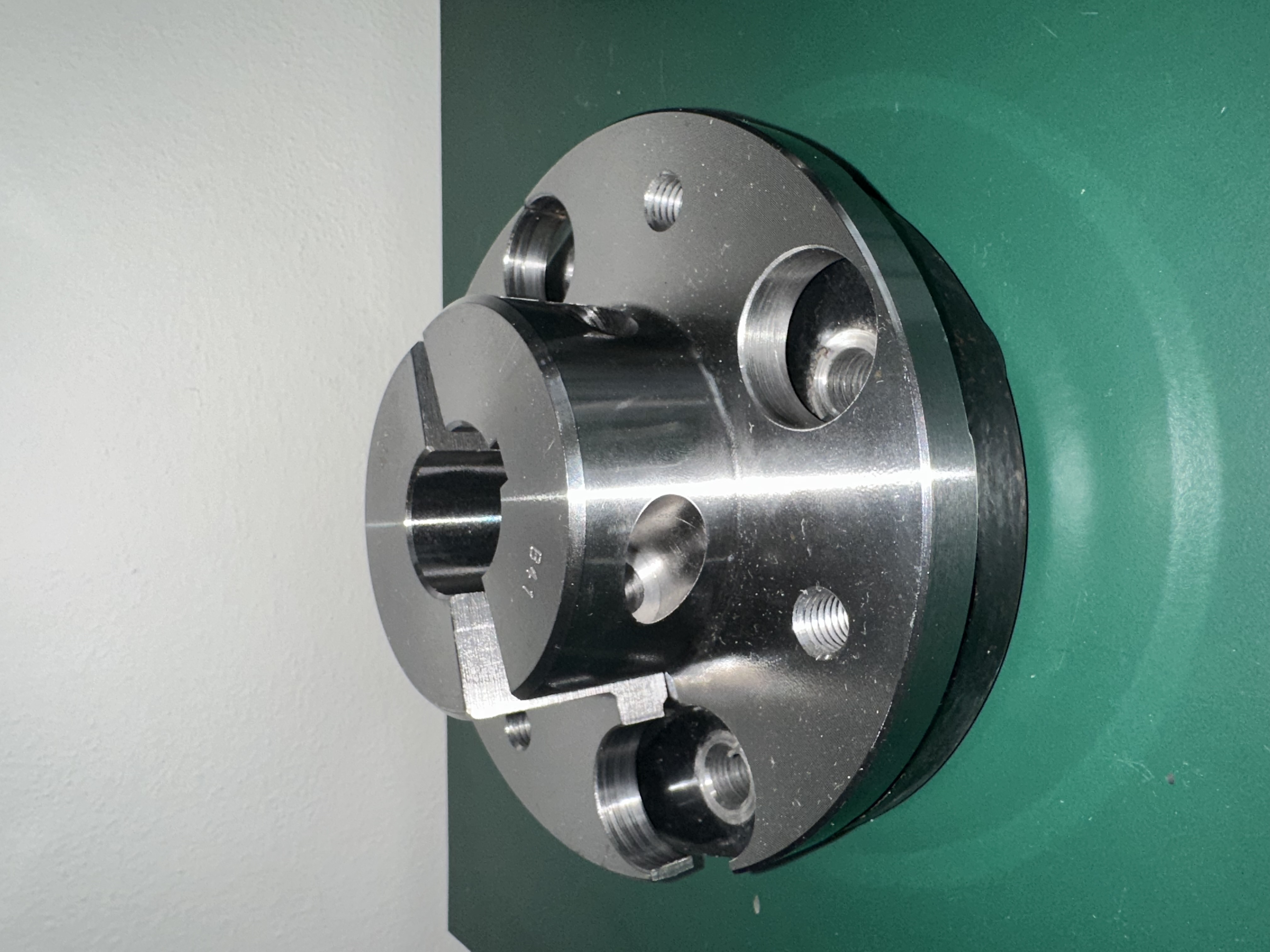

The coupling hubs are made of steel and can be supplied with machined holes and recesses or with slotted holes, providing flexibility in coupling configuration based on specific application requirements. Hub length can be customized to suit specific needs, ensuring a proper connection between coupled components. In summary, the GPG Transmission Coupling is a reliable and flexible solution for applications subject to impulsive loads and misalignments. It offers the convenience of quick replacement of the elastic element without prolonged disruptions.

• Features and dimensions can be subjected to change without notice.
• Further versions are available, we advise you to contact our technical dept
