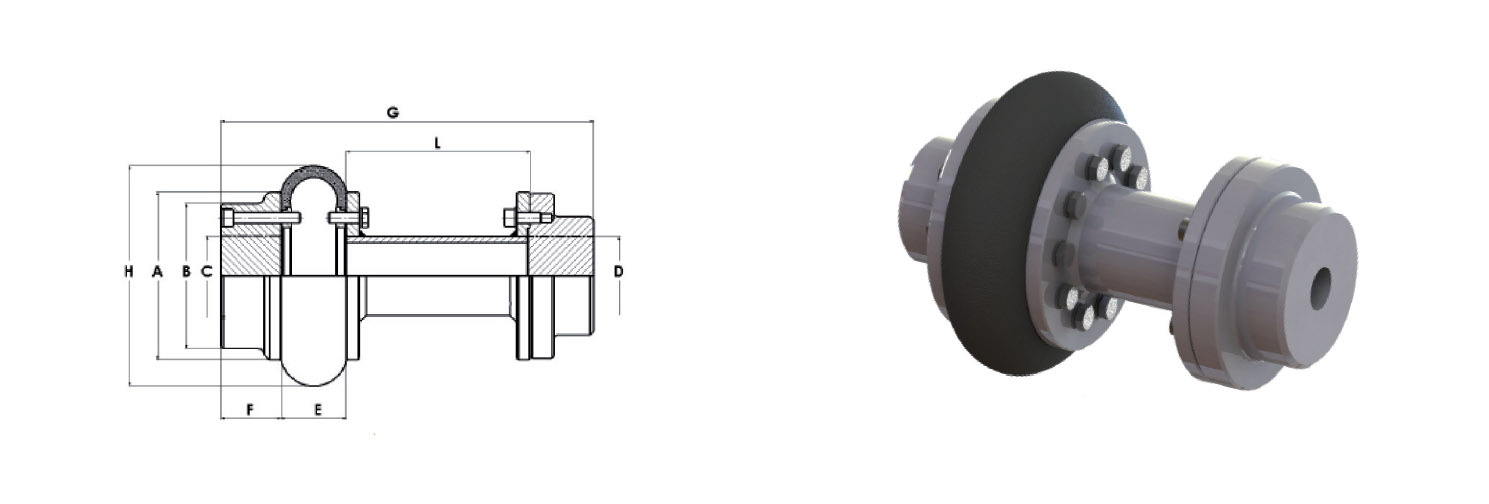

SPACER COUPLINGS

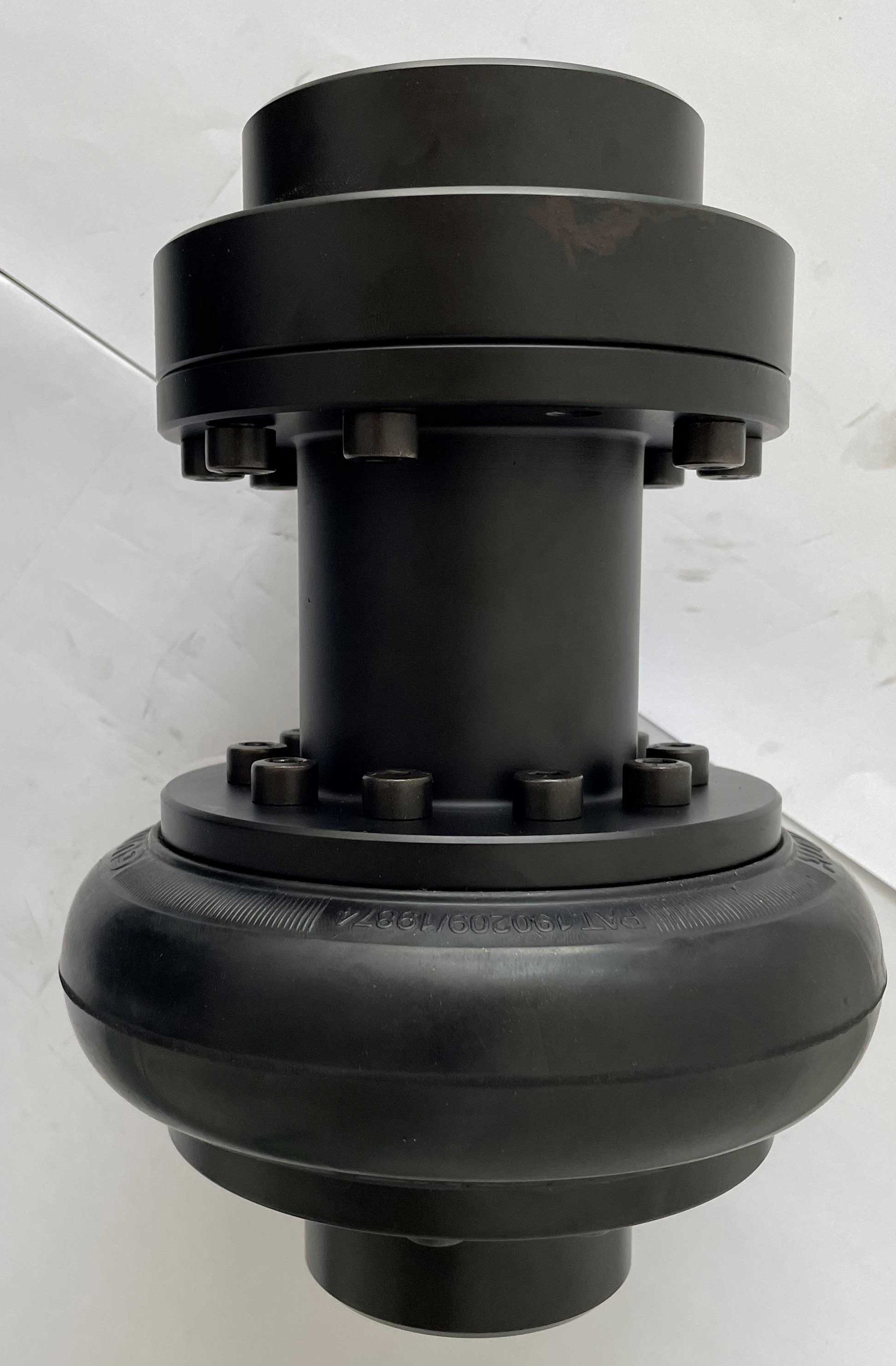

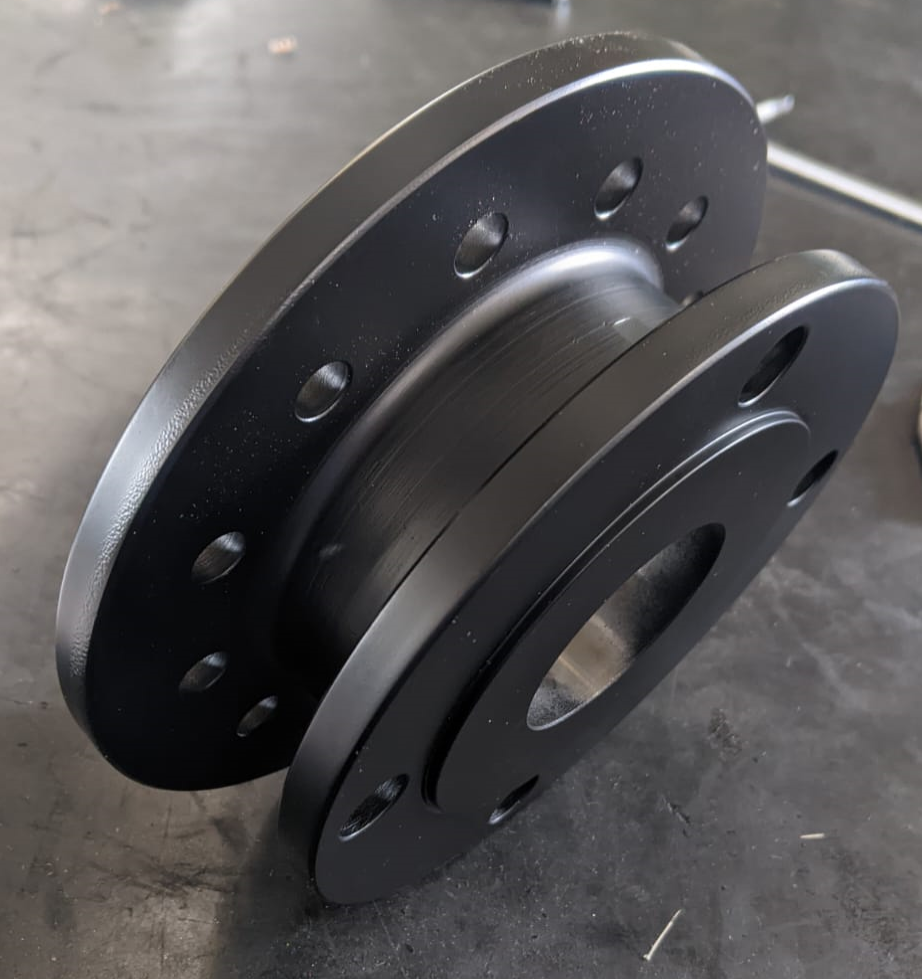

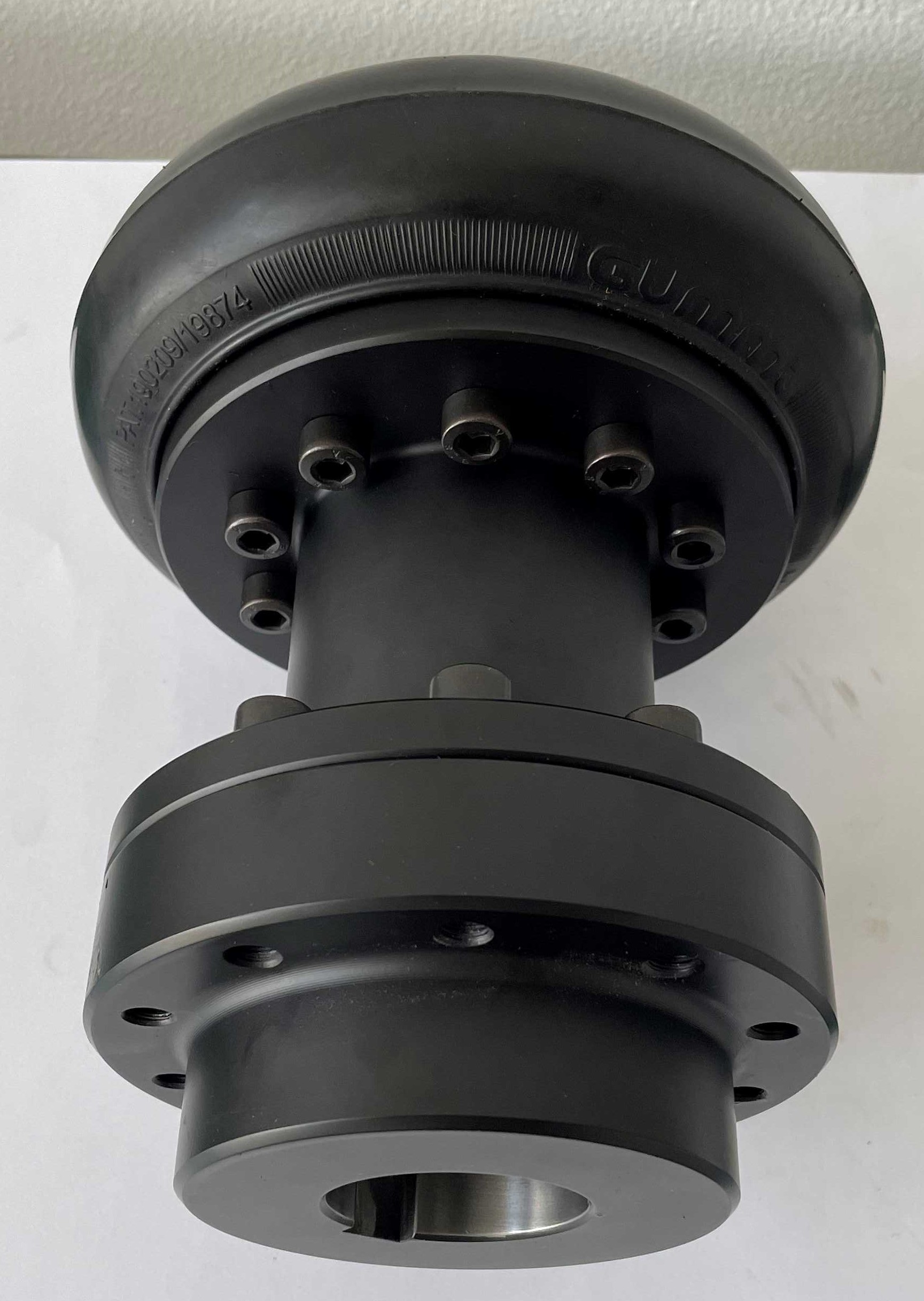

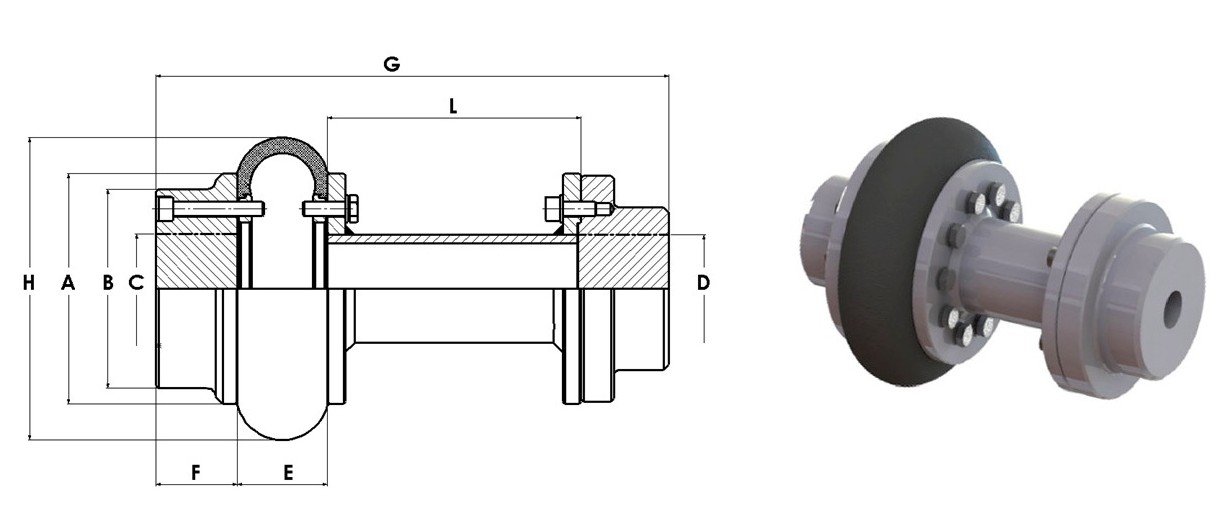

The GU range is also available in spacer versions. The GUD series offers in various configurations with or without internal centering to ensure constant alignment. In some models, the elastic element can be removed without moving the pump hub, while in others it is necessary to move the driven machine hub, backward to release the spacer centering.Power is transmitted exclusively by the elastomer. In the event of a blockage of either the driving or the driven machine, the elastic element becomes damaged and interrupts power transmission.
For further information, please contact our technical department.
RELATED PRODUCTS
GU Elements

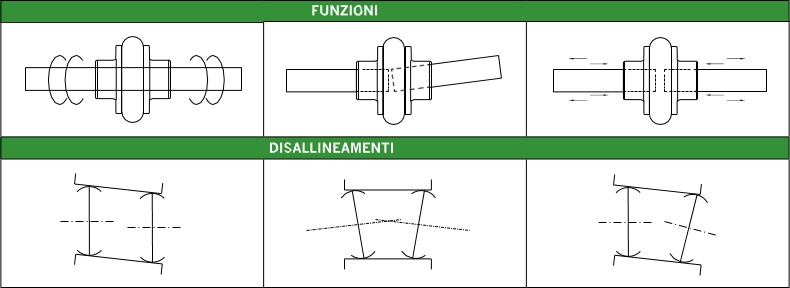

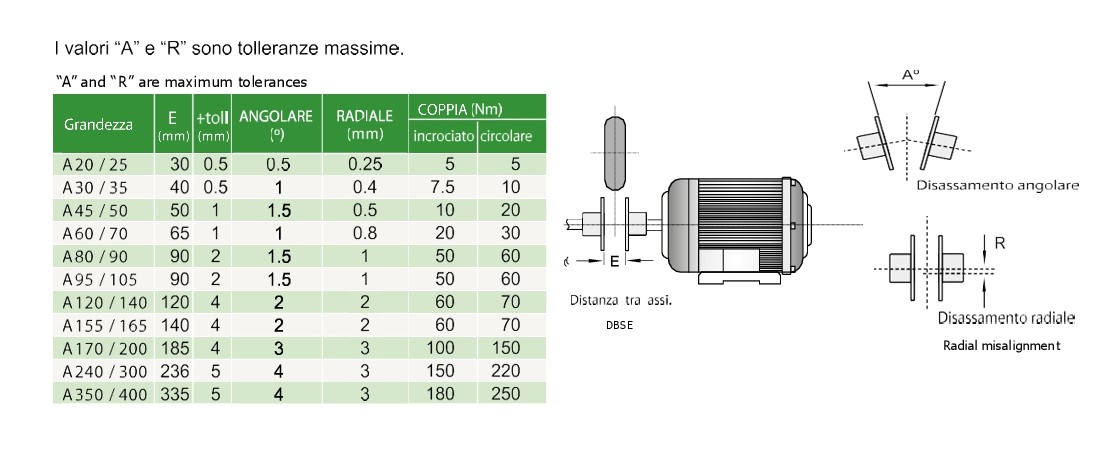

MISALIGNMENTS
FOTOGALLERY
Criteria and recommendations for choosing the joint based on the application.
