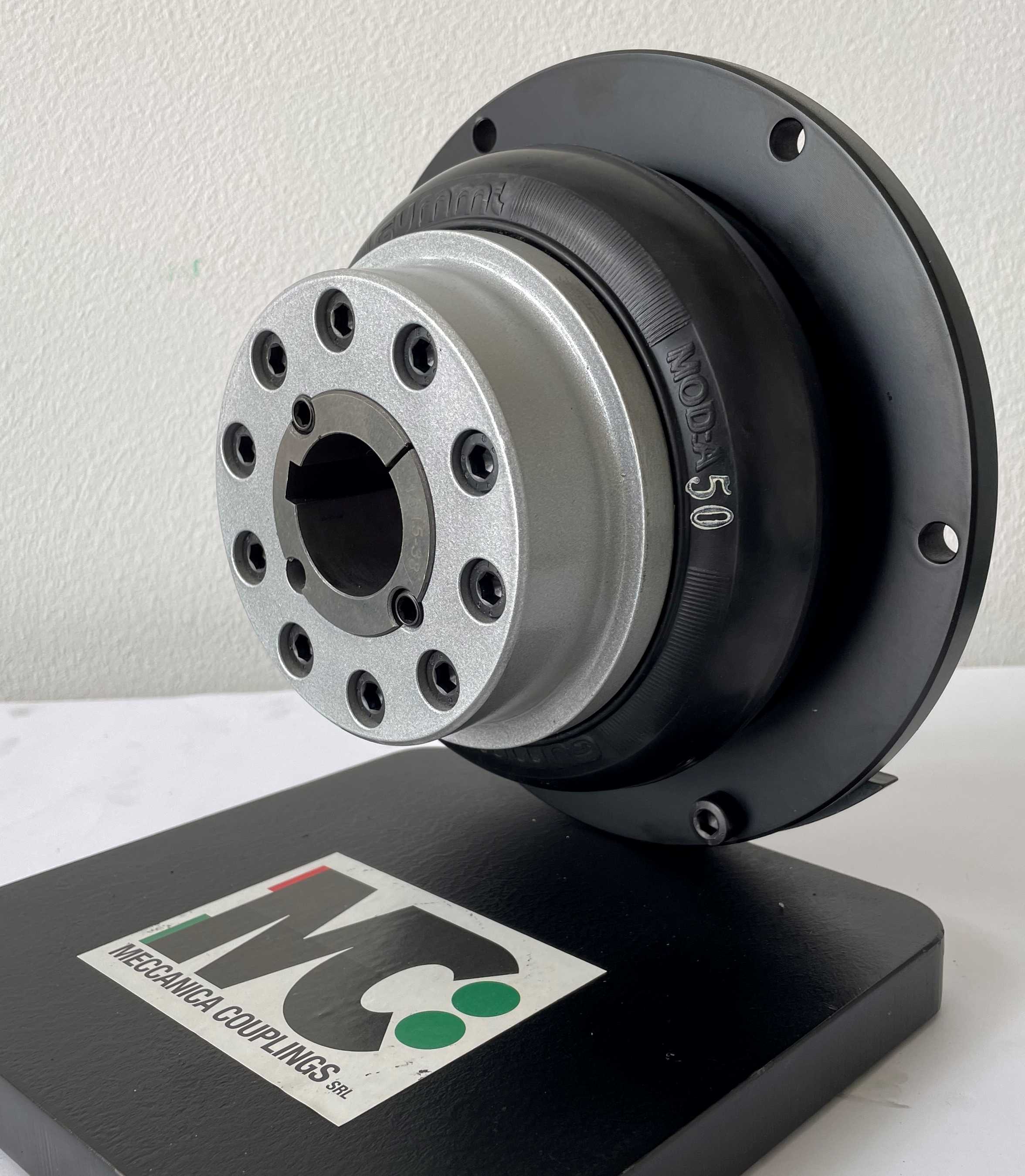

GUBF series

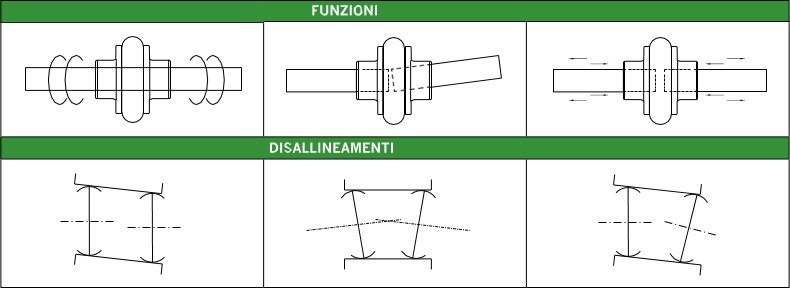

The flexible couplings of the GUBF series are made up of a flange (SAE/not SAE), an elastic element (without cuts) and a hub designed to house a pre-drilled conical bush that can be inserted from the outside or from the inside. The insertion of the conical bush from the outside facilitates the assembly and disassembly of the joint thanks to the possibility of being able to slide the bush into the pump shaft. This coupling is particularly ideal for bare shaft pump applications where misalignments can occur during use.

Engine vibrations are dampened by the elastic element.

Supplied with connection flanges to the engine flywheel in the 6'' ½ 7'' ½ 8'' 10'' 11'' ½ 14'' and non SAE versions.

The conical bush also allows a simple, fast and effective assembly as it is already machined mechanically and therefore with the hole and groove finished.

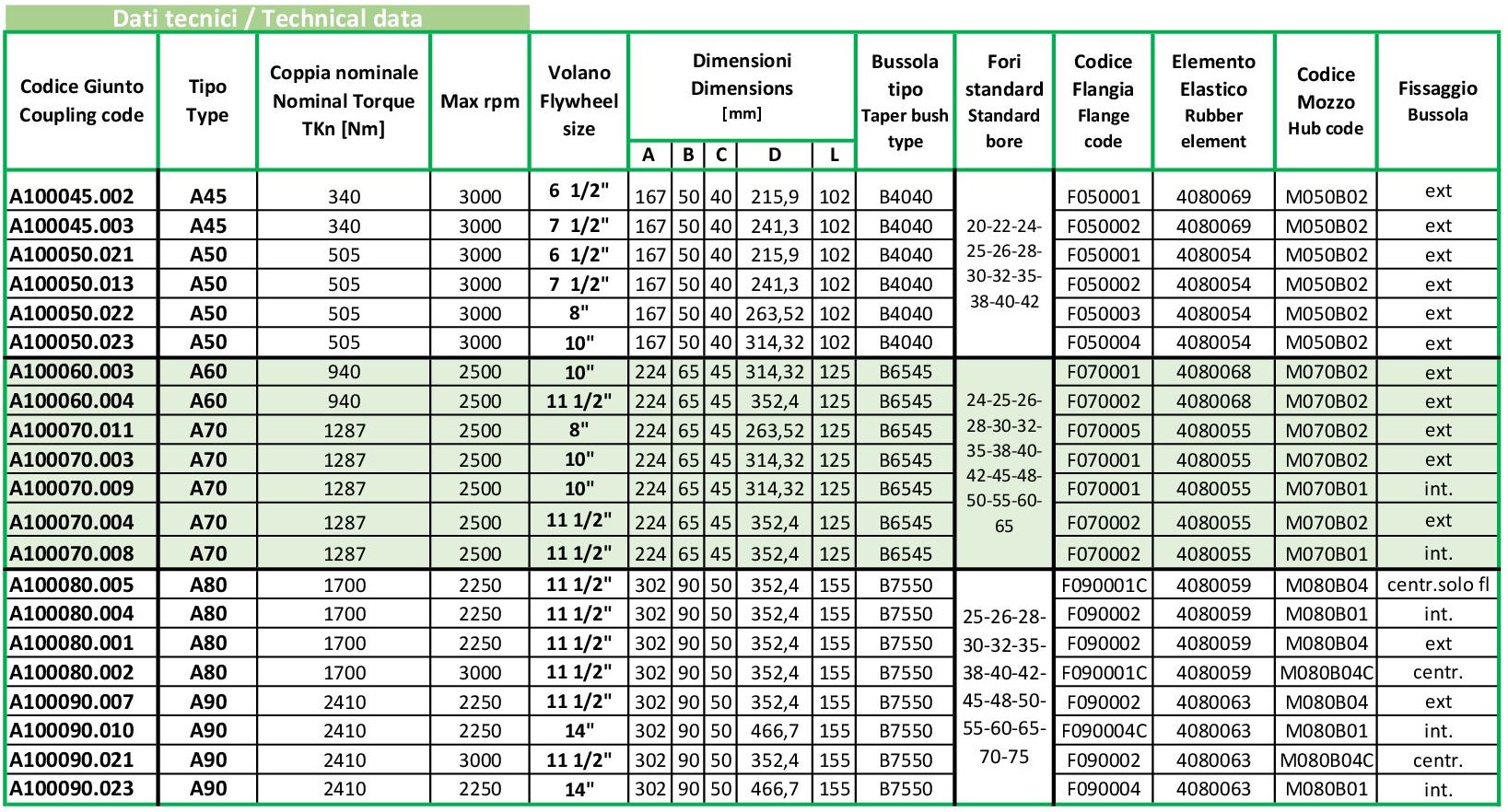

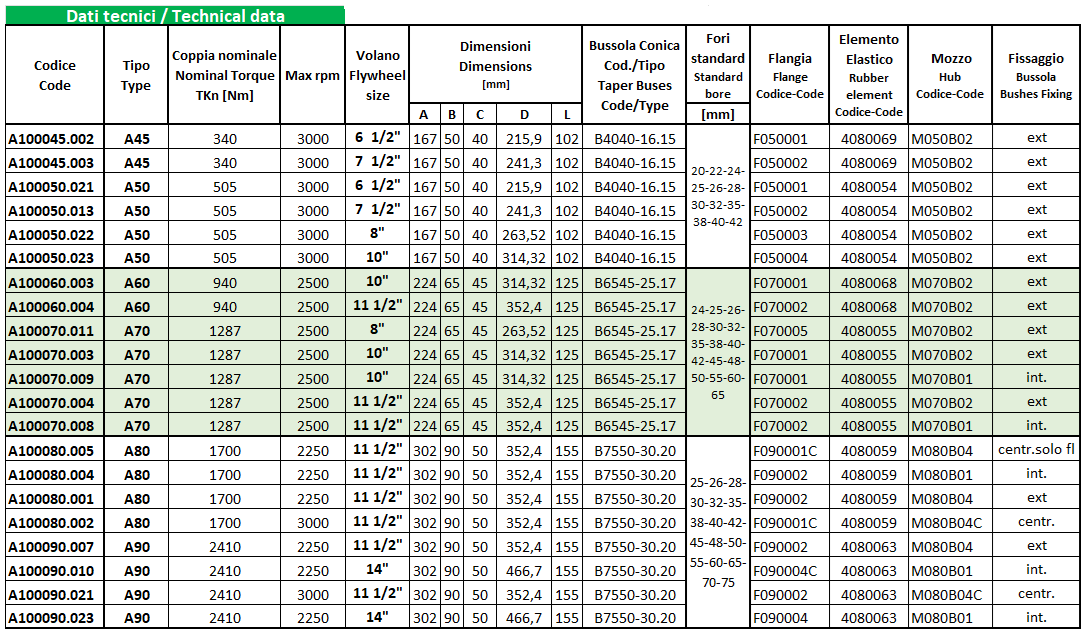

(1) It corresponds to maximum RPM.Contact our technical dept for higher speed.

B01:  TAPER BUSH INTERNAL FIT

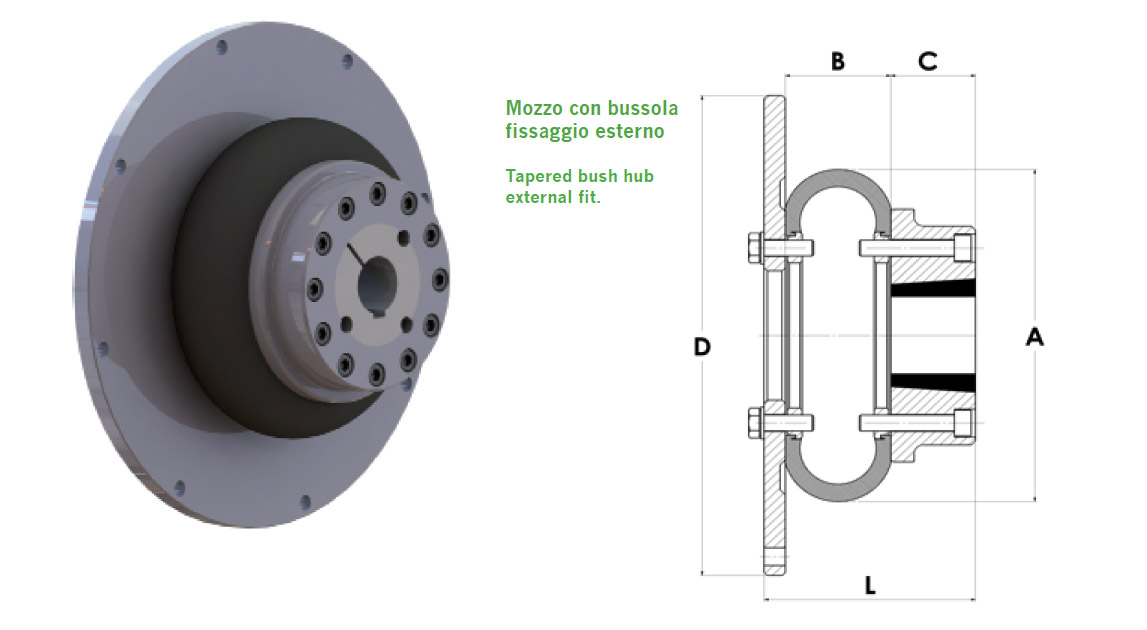

B02:  TAPER BUSH EXTERNAL FIT

Features and dimensions can be subject to change without notice
