GUF series

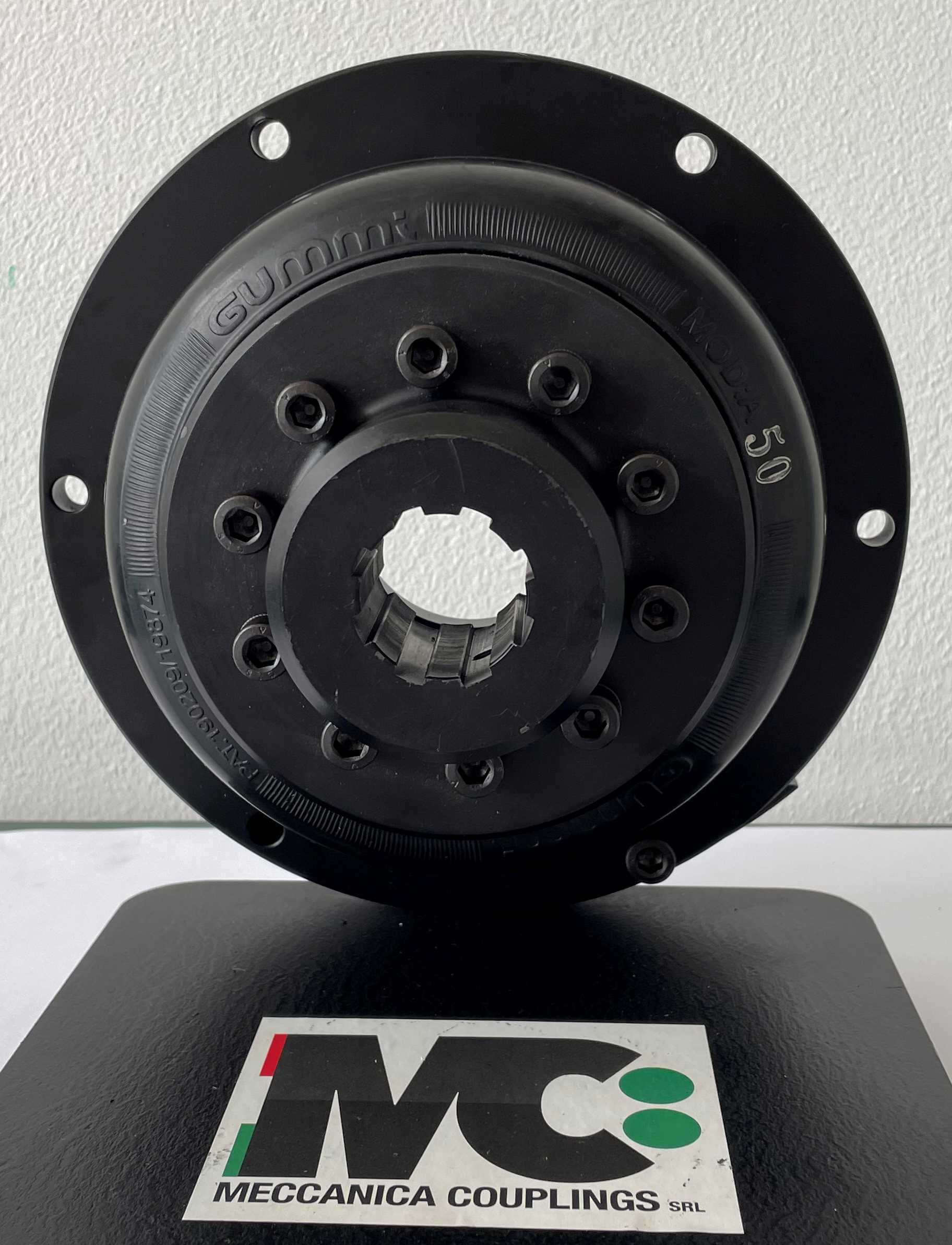

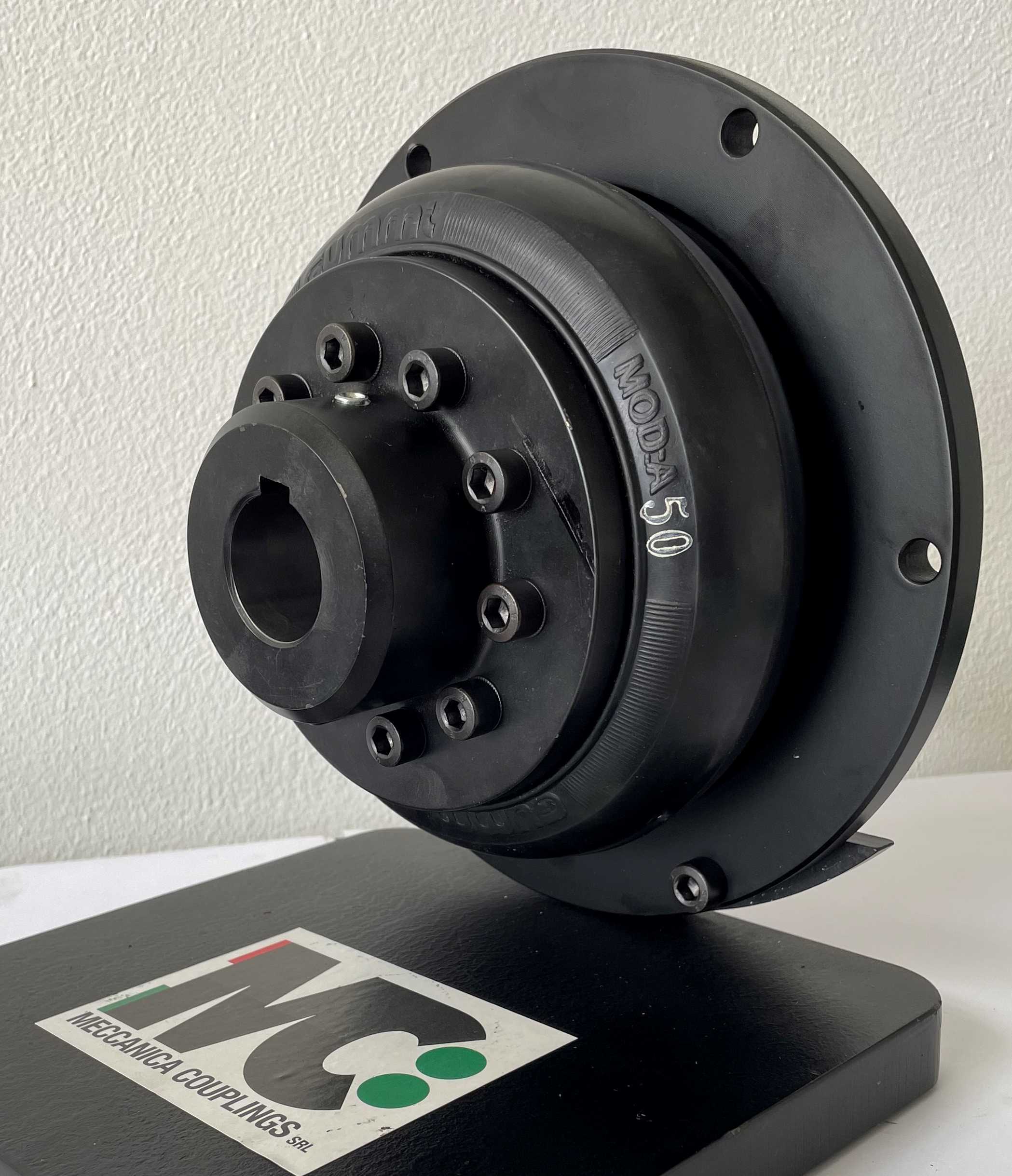

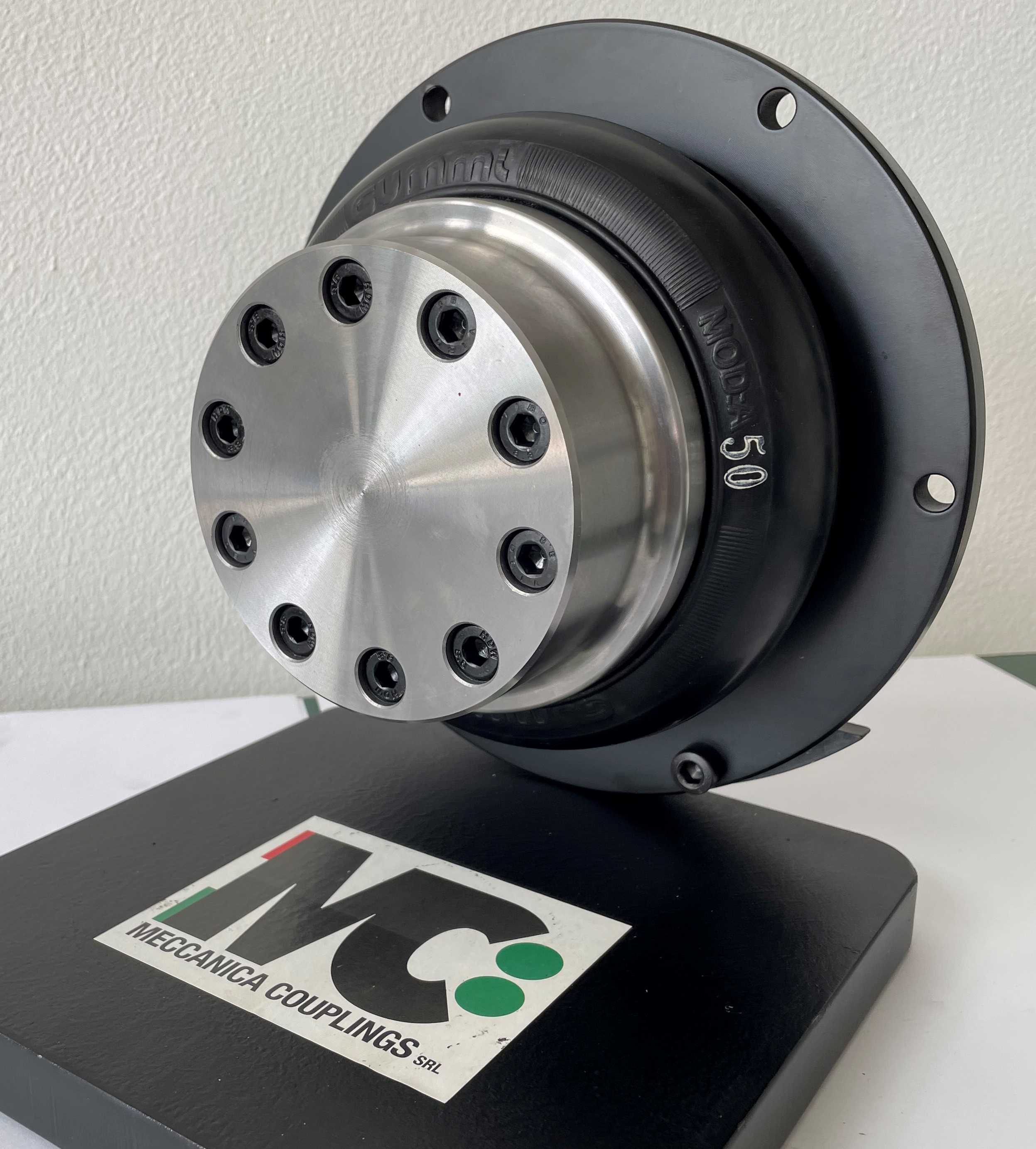

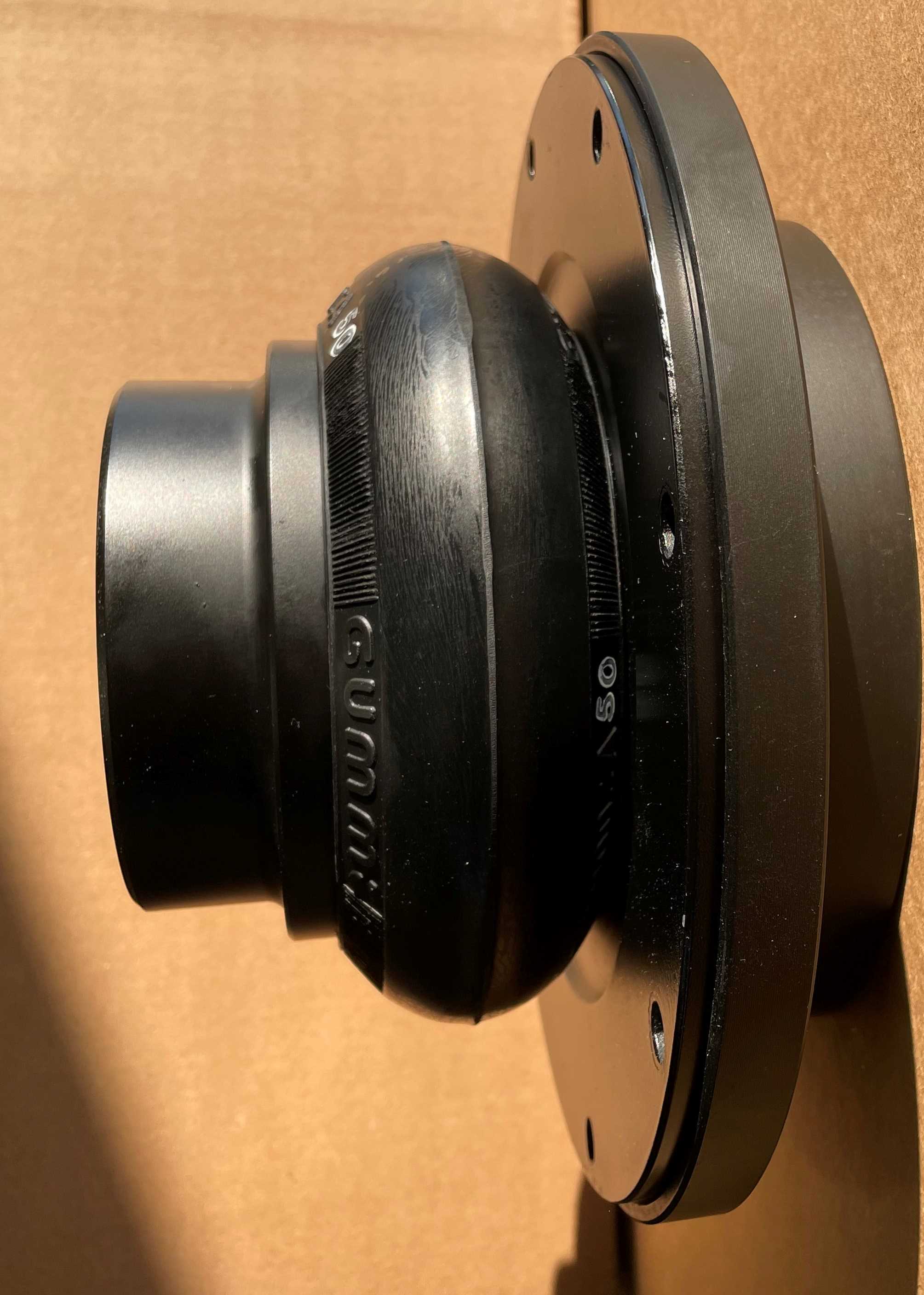

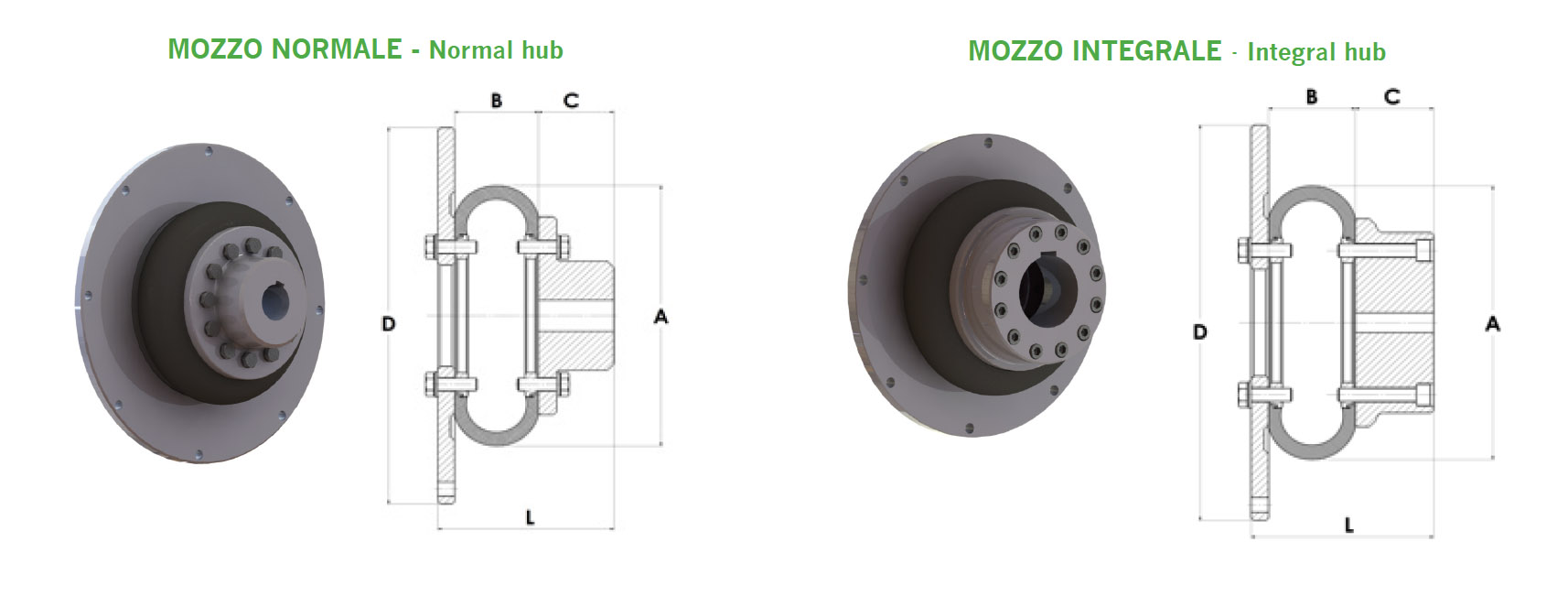

The flexible couplings of the GUF series consist of a steel flange (SAE/non SAE), a flexible element (without cuts) and a hub.

This results in extremely simple assembly: it is sufficient to bring the flange and the hub close to the elastic element and tighten the screws on the elastic element.

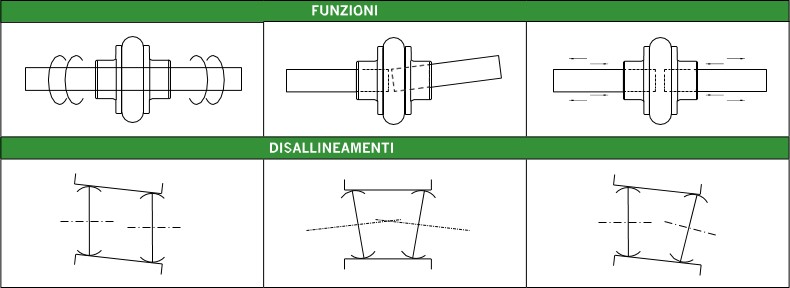

This coupling is particularly ideal for bare shaft pump applications where misalignments can occur during use. Engine vibrations are dampened by the elastic element.

Supplied with connection flanges to the engine flywheel in the 6'' ½ 7'' ½ 8'' 10'' 11'' ½ 14'' and non SAE versions.

Contac us for coupling selection

For application on 18" flywheel and for higher powers contact us at commerciale@meccanicacouplings.it

Please note : it is extremely important to comply with the screws torque indicated in the instructions provided with elastic element.

Features and dimensions can be subjectd to change without notice.
